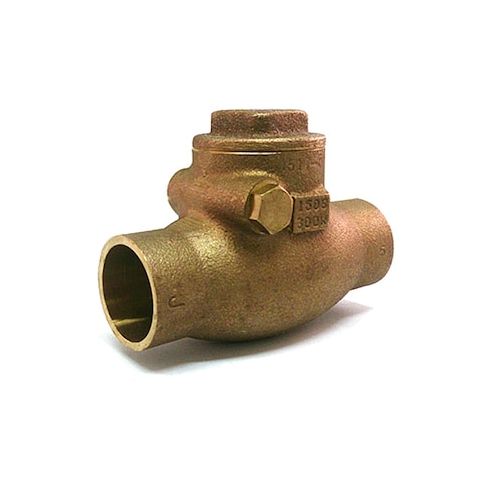

1-1/4" Solder Bronze Swing Check Valve MPN:1510T 1 1/4
Free Shipping
In Stock
The Milwaukee 1-1/4in Solder Bronze Swing Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve is ideal for water supply lines, hydronic heating systems, and steam distribution networks. Its bronze body and PTFE seal ensure excellent corrosion resistance and durability, while its cracking pressure of 0.750-1.000 psi allows for precise control. With a maximum temperature of 406°F and a flow rate of 54 gpm, this valve is perfect for demanding industrial and commercial applications, including HVAC, plumbing, and process control systems.
Top product features:
- 1-1/4in Solder Bronze Swing Check Valve has a single flow design for efficient fluid flow.
- The valve is an inline swing check valve, allowing for easy installation and maintenance.
- The valve features a PTFE seal for reliable and leak-free performance.
Top product applications:
- Plumbing in residential and commercial buildings
- Industrial process control systems
- Hydraulic systems in heavy equipment and machinery
MILWAUKEE VALVE 1510T is a 1-1/4 in bronze swing check valve with solder/sweat x sweat female connections. It features an inline swing check design for one-way flow applications in general-purpose piping systems. It is rated for use with gas, oil, steam, and water.
Key Features:
- Inline swing check mechanism for one-way flow applications
- Bronze body and bronze seat with PTFE seal
- 1-1/4 in nominal valve size with 1-1/4 in connections on both sides
- Solder/sweat x sweat female end connections
- Flow capacity: 54 gpm
- Cv: 54
- Cracking pressure: 0.750 to 1.000 psi
- Maximum operating pressure: 300 psi
- Maximum water pressure: 300 psi at 150 Degrees F
- Maximum steam pressure: 150 psi WSP
- Operating temperature range: -20 Degrees F to 406 Degrees F
- Mounting orientation: horizontal or vertical
- Full flow design
- Overall length: 4.25 in
- Standard: MSS SP-80 Type 4
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 4
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 12.70
- Package Height: 4.90
- Package Weight: 1.86
