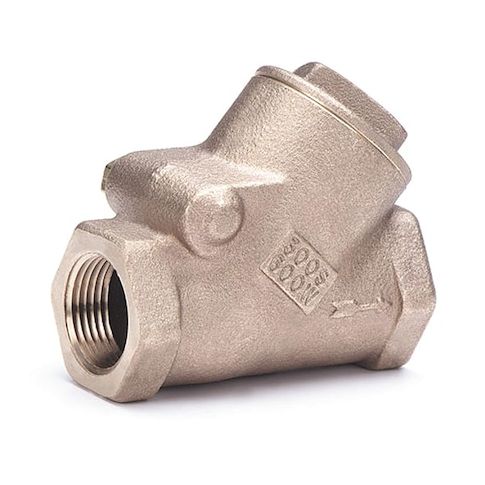

1-1/4" FNPT Bronze Swing Y Check Valve MPN:507 1 1/4
Free Shipping
In Stock
The Milwaukee 1-1/4in FNPT Bronze Swing Y Check Valve is a reliable and durable solution for various industrial applications. Its single flow design and Y swing mechanism ensure efficient flow control, while its bronze body and chrome-cobalt seal materials provide excellent resistance to corrosion and wear. Suitable for use in horizontal and vertical piping systems, this check valve can withstand extreme temperatures from -20°F to 550°F and pressures up to 600 psi at 150°F. Ideal for use in water supply lines, steam systems, and other high-pressure applications, this valve offers reliable performance and long-lasting durability.
Top product features:
- Swing design allows for easy installation and removal without disturbing the surrounding piping.
- Chrome, Cobalt seal material provides long-lasting durability and resistance to corrosion.
- Maximum temperature rating of 550 Degrees F allows for use in high-temperature applications.
Top product applications:
- Plumbing systems requiring a check valve to prevent backflow
- Steam distribution systems where a high-temperature valve is necessary
- Industrial water supply systems where a reliable check valve is required
The MILWAUKEE VALVE 507 is a 1-1/4 in. bronze swing Y check valve with FNPT x FNPT threaded connections. It uses a swing check mechanism in a Y-style body to provide one-way flow control in compatible piping systems for gas, oil, steam, and water within listed pressure and temperature ratings. The Y-pattern body features a full-flow design
- flow capacity: 54 gpm. The valve can be mounted horizontally or vertically.
Key Features:
- 1-1/4 in. nominal valve and pipe size with female NPT connections on both ends
- Swing Y check design with single-flow path
- Bronze body, bronze check mechanism, bronze seat, and bronze seal material
- Flow capacity: 54 gpm
- Cv: 39
- Cracking pressure: 0.750 to 1.000 psi
- Maximum pressure: 300 psi SWP, 600 psi WOG
- Maximum water pressure: 600 psi at 150 degrees F
- Maximum steam pressure: 300 psi WSP
- Operating temperature range: -20 degrees F to 550 degrees F
- Overall length: 4.38 in.
- cap to inlet center: 3 in.
- Mounting orientation: horizontal or vertical
- Standards: ASTM A276 Type 304, ASTM B16, ASTM B61, MSS SP-80
- Valve series: 507
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.10
- Package Height: 2.50
- Package Weight: 3.18
