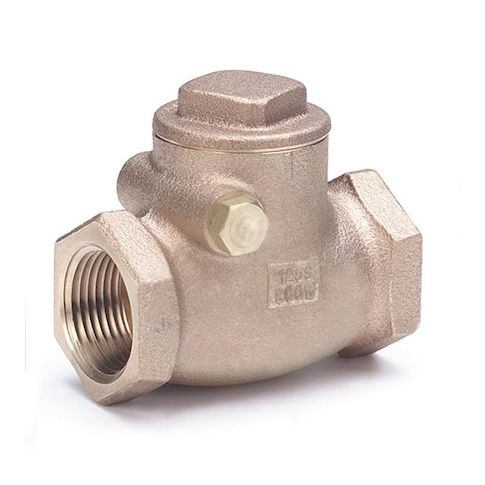

Swing Check Valve, 509 Series, 3/8 in, FNPT x FNPT, Inline, Bronze MPN:509 3/8
Free Shipping
In Stock
The Milwaukee 3/8in FNPT Bronze Swing Check Valve is a reliable and durable solution for various applications, including water supply systems, steam systems, and HVAC installations. Its bronze body and brass seat ensure long-lasting performance in extreme temperatures, ranging from -20°F to 406°F. This valve features a single flow design and inline swing mechanism, allowing for easy installation and maintenance. With a maximum water pressure of 200 psi and steam pressure of 125 psi, it can handle demanding systems. Its compact size and lightweight design make it ideal for tight spaces and easy handling, providing a cost-effective solution for a wide range of applications.
Top product features:
- Inline swing design allows for easy installation and maintenance
- Bronze body provides resistance to corrosion and wear
- Cracking pressure range of 0.750 to 1.000 psi ensures reliable shut-off
Top product applications:
- Water treatment systems
- Steam heating systems
- Industrial piping systems
MILWAUKEE VALVE 509 is a 3/8 in swing check valve with an inline bronze body and FNPT x FNPT threaded connections. It uses a hinged swing check mechanism for one-way flow applications in compatible piping systems within the listed pressure, temperature, and media ratings. This valve is rated for use with gas, oil, steam, and water and features a full-flow design with a 6 gpm flow rating.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 3/8 in nominal valve size with 3/8 in female NPT connections on both ends
- Body material: Bronze
- Check mechanism material: Brass
- Seat and seal materials: Brass seat with bronze/brass sealing components
- Cracking pressure: Verify specified value before publication
- Flow rating: 6 gpm
- Cv: 6
- Pressure ratings: 200 psi water pressure at 150 Degrees F
- 125 psi WSP steam
- 125 psi SWP
- 200 psi WOG maximum pressure
- Temperature range: -20 Degrees F to 406 Degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: Verify specified value before publication
- Standards: ASTM B16, ASTM B62
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.90
- Package Height: 1.20
- Package Weight: 0.50
