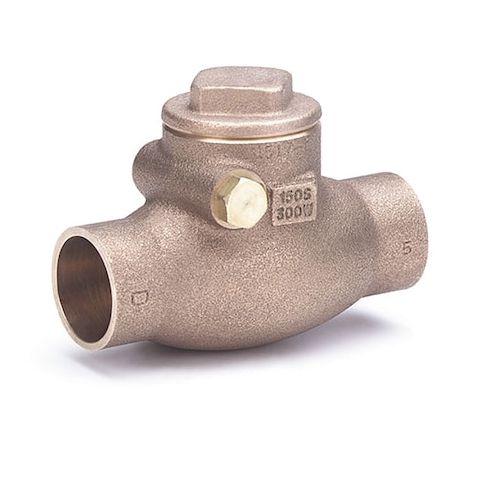

Swing Check Valve, 1509 Series, 3/4 in, Sweat x Sweat, Inline Swing, Bronze MPN:1509 3/4"
Free Shipping
In Stock
The Milwaukee 3/4in Solder Bronze Swing Check Valve is a reliable and efficient solution for various applications, including plumbing and HVAC systems. Its single-flow design allows for smooth operation and minimizes pressure drop, while its inline swing mechanism ensures easy installation and maintenance. Built with high-quality bronze materials, this valve can withstand extreme temperatures and water pressures, making it suitable for use in residential and commercial settings. With a flow rate of 18 gpm, it's ideal for applications such as water treatment, irrigation, and hydronic heating systems.
Top product features:
- It allows for one-way flow of fluid, preventing backflow and ensuring proper system operation.
- It is designed for horizontal mounting, making it suitable for applications where space is limited.
- It can handle high temperatures up to 406 degrees F, making it suitable for use in extreme environments.
Top product applications:
- Water Supply Systems
- Steam Power Plants
- Industrial Process Control Systems
The MILWAUKEE VALVE 1509 is a 3/4 in. swing check valve with an inline bronze body and sweat x sweat connections. It is for general-purpose gas, oil, steam, and water service, using a swing mechanism to allow flow in one direction and restrict reverse flow in piping systems. This horizontal-mount valve features a single-flow design, full-flow construction, and a 0.5 to 0.75 psi cracking pressure.
Key Features:
- Valve type: Swing check valve with inline swing body design
- Body material: Bronze
- Check mechanism material: Brass
- Connection size: 3/4 in. x 3/4 in.
- Connection type: Sweat x sweat
- solder connection
- Connection gender: Female x female
- Flow capacity: 18 gpm
- Cv: 18
- Pressure ratings: 200 psi WOG, 200 psi maximum water pressure, 125 psi WSP maximum steam pressure
- Temperature range: -20 degrees F to 406 degrees F
- Seat material: Bronze
- seal material: Viton
- Mounting orientation: Horizontal
- Overall length: 3.31 in.
- Standard: MSS SP-80 Type 3
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.50
- Package Height: 1.50
- Package Weight: 0.80
