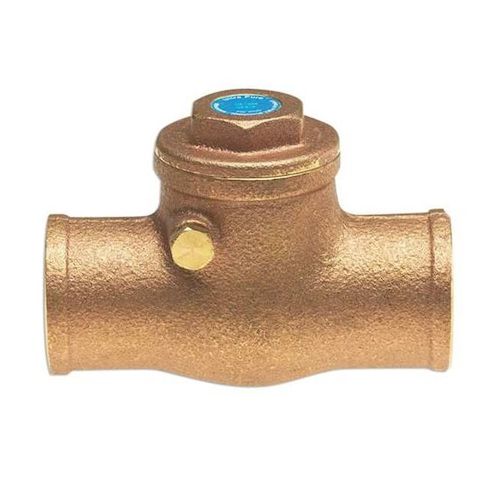

3/8" Sweat Low Lead Bronze Spring Check Valve MPN:UP1509 3/8
Free Shipping
In Stock
The Milwaukee 3/8in Sweat Low Lead Bronze Spring Check Valve is a reliable and efficient solution for various applications. Its single-flow design and inline swing mechanism make it ideal for use in plumbing systems, water treatment plants, and industrial processes. The bronze body and valve materials ensure durability and resistance to corrosion, while the spring-loaded design prevents backflow and maintains system integrity. With a maximum temperature range of 200°F and a maximum water pressure rating of 300 psi, this check valve is suitable for use in a wide range of environments and applications, including residential and commercial plumbing systems.
Top product features:
- The valve has a single flow design for efficient water flow.
- The valve is an inline swing check valve, allowing for easy installation and maintenance.
- The valve has a cracking pressure of 0.750 to 1.000 psi, providing reliable shut-off.
Top product applications:
- Plumbing systems for residential and commercial buildings
- Industrial process control systems
- HVAC systems for heating and cooling applications
The MILWAUKEE VALVE UP1509 is a 3/8 in low lead horizontal swing check valve with sweat x sweat female connections and an inline bronze body. It is configured for one-way flow in gas, oil, and water service within stated ratings. The swing check mechanism opens with forward flow and is configured to restrict reverse flow. This valve features low lead construction
- certifications and standards: NSF 61, NSF/ANSI 372.
Key Features:
- - Valve type: Low lead horizontal swing check valve with inline body design.
- - Size: 3/8 in nominal valve and pipe size with 3/8 in connections on both sides.
- - Connections: Sweat x sweat, female on both ends.
- - Body material: Bronze.
- - Check mechanism: Swing design with brass mechanism material.
- - Flow rating: 6 gpm with Cv of 6.
- - Cracking pressure: 0.750 to 1.000 psi.
- - Pressure rating: 300 psi non-shock CWP
- maximum water pressure 300 psi at 150 degrees F.
- - Temperature range: -20 degrees F to 200 degrees F.
- - Mounting: Horizontal, with pressure coming from under the disc.
- - Seat and seal materials: Brass seat and bronze seal.
- - Certifications and standards: NSF 61, NSF/ANSI 372.
- - Dimensions: 2 1/4 in overall length and 1 7/16 in overall height.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.63
- Package Width: 11.88
- Package Height: 2.75
- Package Weight: 28.68
