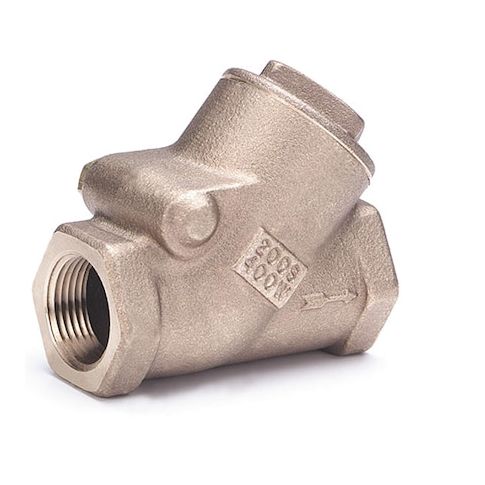

Swing Y Check Valve, 508 Series, 1/2 in, FNPT x FNPT, Bronze Body MPN:508 1/2"
Free Shipping
In Stock
The Milwaukee 1/2in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for various applications requiring precise flow control. Its single-flow design and Y swing mechanism ensure smooth operation and minimize pressure drop, making it suitable for use in commercial and industrial settings. This bronze-bodied check valve can withstand extreme temperatures, from -20°F to 550°F, and pressures up to 400 psi. Ideal for use in water supply systems, steam distribution networks, and HVAC applications, this valve provides long-lasting performance and easy maintenance, ensuring a consistent flow rate of 10 gpm.
Top product features:
- Swing design allows for easy installation and maintenance
- Single flow design allows for unidirectional fluid flow
- Bronze construction provides high-temperature resistance up to 550°F
Top product applications:
- Water supply systems
- Steam power plants
- Industrial process control systems
The MILWAUKEE VALVE 508 is a 1/2 in. swing Y check valve with a bronze body and FNPT x FNPT threaded connections. It is designed for one-way flow applications with a swing check mechanism intended to limit reverse flow in general-purpose gas, oil, steam, and water service. The valve is designed for horizontal mounting and has a 10 gpm flow rating and 7.2 Cv.
Key Features:
- Valve type: Swing Y check valve
- Body style and material: Y-style bronze body
- Connection size and type: 1/2 in. FNPT x FNPT, female threaded connections on both ends
- Cracking pressure: 0.500 to 0.750 psi
- Pressure ratings: 400 psi WOG
- 400 psi at 150 degrees F water
- 200 psi WSP steam
- Temperature range: -20 degrees F to 550 degrees F
- Internal materials: Bronze check mechanism, bronze seat, bronze seal material
- Dimensions: 2.63 in. overall length
- 1 3/4 in. overall height
- 1 3/4 in. cap to inlet center
- Standards: MSS SP-80 Type 3
- Valve series: 508
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.20
- Package Width: 7.40
- Package Height: 3.90
- Package Weight: 11.15
