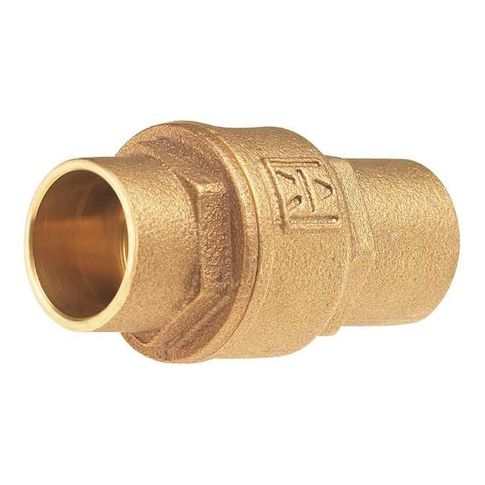

3/8" Solder Low Lead Bronze Spring Check Valve MPN:UP1548T 3/8
Free Shipping
In Stock
The Milwaukee 3/8in Solder Low Lead Bronze Spring Check Valve is a reliable and efficient solution for various industrial applications. This inline spring check valve is designed for use in horizontal installations, featuring a bronze body and spring materials that provide excellent durability and resistance to corrosion. With a cracking pressure range of 0.750 to 1.000 psi, this valve ensures smooth flow control and prevents backflow in applications such as HVAC systems, plumbing, and hydronic heating systems. Its ability to withstand high temperatures and water pressures makes it an ideal choice for demanding industrial environments.
Top product features:
- 3/8in Solder Low Lead Bronze Spring Check Valve
- Inline spring mechanism
- Bronze body and seat materials
Top product applications:
- Plumbing fixtures in residential and commercial buildings
- Water treatment systems for industrial applications
- HVAC systems in buildings requiring precise temperature control
MILWAUKEE VALVE UP1548T is a 3/8 in low lead spring check valve with an inline cast bronze body and solder sweat x sweat connections. It is intended for general purpose gas, oil, and water service and uses a spring-assisted check design for reverse-flow control in horizontal installations.
Key Features:
- Nominal valve size: 3/8 in
- Connection type: Sweat x Sweat
- side 1 female, side 2 female
- Body material: Cast bronze
- Valve body style: Inline
- Type: Spring
- flow design: Single
- Cracking pressure: 0.750 to 1.000 psi
- Flow rating: 2.5 gpm
- Cv: 2.5
- Maximum pressure: 250 psi WOG
- maximum water pressure: 250 psi at 150 degrees F
- Operating temperature range: -20 degrees F to 353 degrees F
- Seat material: Bronze
- seal material: PTFE
- spring material: Bronze
- Silent check design: Yes
- NSF certification: NSF 61
- Standard: NSF/ANSI 372
- Overall length: 1.22 in
- overall height: 2 5/32 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 5.56
- Package Height: 2.56
- Package Weight: 10.66
