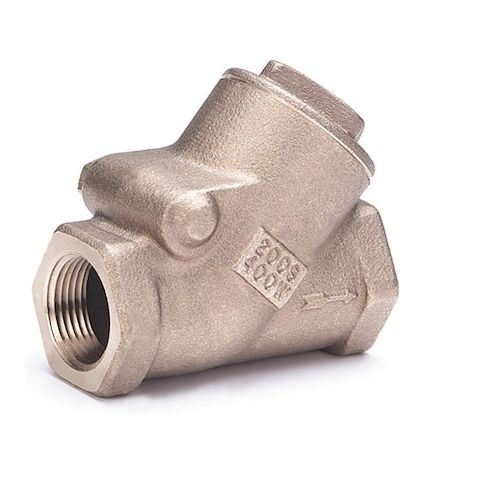

Check Valve, 508 Series, Y Swing, 1 in, FNPT x FNPT, Bronze Body MPN:508 1"
Free Shipping
In Stock
The Milwaukee 1in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for various applications. Its single-flow design and Y swing mechanism ensure smooth operation, making it ideal for use in plumbing systems, water treatment plants, and industrial processes. The valve's bronze body and chrome-cobalt seal provide excellent durability and resistance to corrosion, while its 0.500-0.750 psi cracking pressure ensures precise control. With a flow rate of 31 gpm, this valve is suitable for a range of applications, including residential and commercial plumbing, irrigation systems, and chemical processing. It withstands temperatures from -20°F to 550°F.
Top product features:
- Y Swing design allows for easy maintenance and cleaning
- Bronze body and seat materials provide corrosion resistance and durability
- Sealing mechanism maintains a tight shut-off at low pressures
Top product applications:
- Plumbing systems in residential and commercial buildings
- Industrial process control applications
- Steam power plant systems
The MILWAUKEE VALVE 508 is a 1 in. swing Y check valve with a bronze body and FNPT x FNPT threaded connections. It uses a swing check mechanism in a Y-style body and is configured for one-way flow applications in piping systems with gas, oil, steam, or water media within listed ratings. This valve is designed for horizontal mounting and has a rated flow of 31 gpm.
Key Features:
- Valve type: Swing Y check valve
- Body material: Cast bronze
- Check mechanism and seat material: Bronze
- Connection type: 1 in. FNPT x FNPT, female on both ends
- Cracking pressure: 0.500 to 0.750 psi
- Flow capacity: Cv 22
- 31 gpm
- Pressure ratings: 400 psi WOG, 200 psi SWP/WSP, and 400 psi at 150 degrees F maximum water pressure
- Temperature range: -20 degrees F to 550 degrees F
- Mounting orientation: Horizontal
- Overall length: 3.69 in.
- overall height: 2-1/2 in.
- Standard: MSS SP-80 Type 3
- Check type: Standard swing check feature
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.80
- Package Height: 3.30
- Package Weight: 2.15
