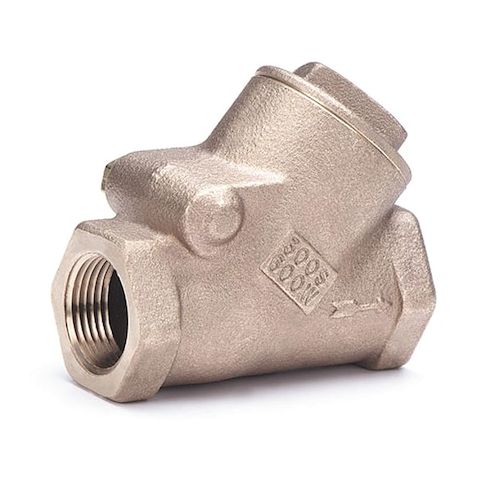

1-1/2" FNPT Bronze Swing Y Check Valve MPN:507 1 1/2
Free Shipping
In Stock
This 1-1/2in FNPT Bronze Swing Y Check Valve from Milwaukee is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it prevents backflow and ensures a smooth flow of liquids. Its bronze body and valve seat provide excellent corrosion resistance and durability, while its chrome-cobalt seal ensures a tight shut-off. Ideal for use in water treatment, irrigation, and industrial processes, this valve can handle pressures up to 600 psi and temperatures up to 550°F. Its compact design and easy installation make it a great choice for a wide range of applications.
Top product features:
- Y Swing design allows for easy installation and maintenance
- Single flow design enables unidirectional flow control
- Bronze body and valve materials provide high-temperature resistance up to 550°F
Top product applications:
- Industrial Process Control Systems
- Water Treatment Facilities
- Steam Power Plants
The Milwaukee Valve 507 is a 1-1/2 in. bronze swing Y check valve with FNPT x FNPT female threaded connections. It is intended for one-way flow control applications in general-purpose piping systems and is rated for gas, oil, steam, and water service. The Y-style body and swing check mechanism are configured for backflow-control applications. Rated flow capacity is 76 gpm with a Cv of 56.
Key Features:
- Valve type: Swing Y check valve with Y-pattern body and swing mechanism
- Size: 1-1/2 in. nominal valve size, pipe size, and connection size on both ends
- Connections: FNPT x FNPT with female NPT threads on both sides
- Body and internals: Cast bronze body with bronze check mechanism, seat, and seal material
- Pressure ratings: 600 psi WOG, 300 psi SWP, and 300 psi WSP
- maximum water pressure 600 psi at 150 degrees F
- Temperature range: -20 degrees F to 550 degrees F
- Flow capacity: 76 gpm
- Mounting: Horizontal or vertical
- Overall length: 4-5/8 in.
- Standards: ASTM A276 TY.304, ASTM B16, ASTM B61, MSS SP-80
- Valve series: 507
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.50
- Package Height: 2.90
- Package Weight: 4.13
