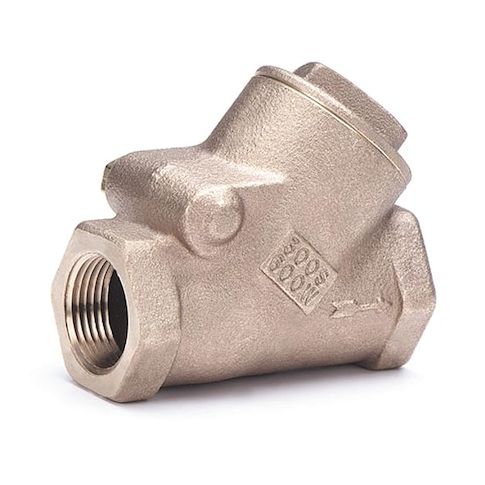

3/4" FNPT Bronze Swing Y Check Valve MPN:507 3/4
Free Shipping
In Stock
The Milwaukee 3/4in FNPT Bronze Swing Y Check Valve is a reliable and durable solution for various applications. Suitable for use in horizontal and vertical positions, this valve ensures efficient flow control and prevents backflow in plumbing systems. Its bronze body and chrome-cobalt seal provide excellent corrosion resistance and high-temperature performance, making it ideal for use in water and steam applications. With a flow rate of 18 gpm, this valve is perfect for residential and commercial plumbing projects, including irrigation systems, water treatment plants, and HVAC systems. Its compact design and easy installation make it a convenient choice for plumbers and DIYers alike.
Top product features:
- It has a single flow design that allows fluid to flow in one direction.
- It features a Y swing mechanism that allows for easy installation and maintenance.
- It has a bronze body and seat that provides resistance to corrosion and wear.
Top product applications:
- Hydraulic systems
- Pneumatic systems
- Water treatment plants
The MILWAUKEE VALVE 507 is a 3/4 in. swing Y check valve with FNPT x FNPT connections. It uses a swing check mechanism in a Y-style bronze body to allow one-way flow and is intended to limit reverse flow in general-purpose piping systems handling gas, oil, steam, or water.
Key Features:
- 3/4 in. nominal valve size with 3/4 in. female NPT connections on both ends
- Y-style body with swing check mechanism
- Body material: cast bronze
- seat material: bronze
- check mechanism material: bronze
- For media: gas, oil, steam, water
- Flow rate: 18 gpm
- Cv: 13
- Cracking pressure: 0.750 to 1.000 psi
- Maximum water pressure: 600 psi at 150 degrees F
- Maximum steam pressure: 300 psi WSP
- Operating temperature range: -20 degrees F to 550 degrees F
- Overall length: 3 in.
- cap to inlet center: 1 15/16 in.
- Mounting orientation: horizontal or vertical
- Check type: standard
- flow design: single
- no counterweight
- Standards: ASTM A276 TY.304, ASTM B16, ASTM B61, MSS SP-80
