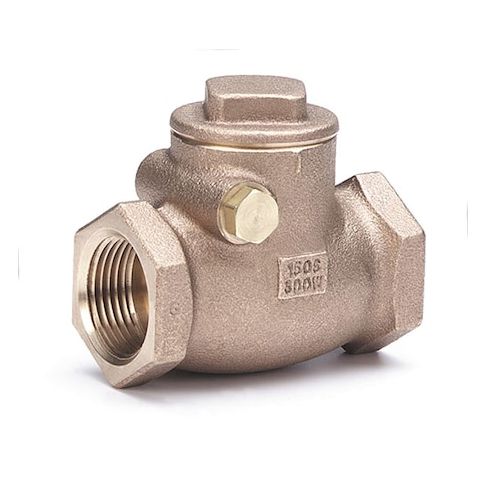

Swing Check Valve, 510T Series, 1/2 in, FNPT x FNPT, Bronze Body MPN:510T 1/2
Free Shipping
In Stock
The Milwaukee 1/2in FNPT Bronze Swing Check Valve is a reliable and efficient solution for various applications, including residential and commercial plumbing systems. Its single-flow design and inline swing mechanism ensure smooth operation and prevent backflow, while the bronze body and PTFE seal provide durability and corrosion resistance. With a maximum temperature rating of 406°F and a maximum water pressure of 300 psi, this valve is suitable for use in hot water systems and high-pressure applications. Its compact size and lightweight design make it easy to install and maintain, making it an ideal choice for plumbers and contractors.
Top product features:
- Swing design allows for easy manual operation to open and close the valve.
- PTFE seal provides resistance to corrosion and chemical damage.
- Bronze construction enables high-temperature operation up to 406°F.
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- Industrial Process Control Systems
The MILWAUKEE VALVE 510T is a 1/2 in. swing check valve with an inline bronze body and FNPT x FNPT threaded connections. It is for use in one-direction flow applications with a hinged swing check mechanism. The valve is rated for gas, oil, steam, and water service and features a full-flow single design, a 10 gpm flow rating, and a Cv of 10.
Key Features:
- Valve type: Swing check valve with inline body design
- Body material: Bronze
- Connection size: 1/2 in. x 1/2 in.
- Connection type: FNPT x FNPT, female NPT on both ends
- Check mechanism: Swing with PTFE mechanism material
- Seal material: PTFE
- seat material: Bronze
- Cracking pressure: 0.750 to 1.000 psi
- Flow rating: 10 gpm
- Cv: 10
- Pressure ratings: 300 psi maximum operating pressure
- 300 psi at 150 Degrees F maximum water pressure
- 150 psi WSP maximum steam pressure
- Temperature range: -20 Degrees F to 406 Degrees F
- Mounting orientation: Horizontal or vertical
- Standards: ASTM B16, ASTM B62, MSS SP-80
- Overall length: 2.31 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.00
- Package Height: 1.30
- Package Weight: 0.57
