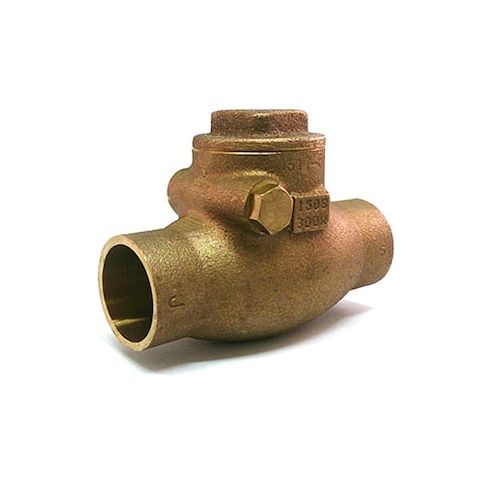

Swing Check Valve, 1510T Series, 3/4 in, Sweat x Sweat, Inline, Bronze MPN:1510T 3/4

• The MILWAUKEE VALVE 1510T is a 3/4 in. inline swing check valve with a bronze body and sweat x sweat female connections. It uses a hinged swing mechanism for one-direction flow applications and reverse-flow check operation. This valve is rated for the listed media and operating specifications, including gas, oil, steam, and water, and supports horizontal or vertical mounting.

  Key Features:

  • Valve type: Swing check valve with inline body design and single flow path
  • Body material: Bronze
  • Connection size: 3/4 in. on both sides
  • Connection type: Sweat x sweat
  • solder connection
  • Connection gender: Female x female
  • Flow capacity: 18 gpm
  • Cv 18
  • Cracking pressure: 0.750 to 1.000 psi
  • Pressure ratings: 300 psi maximum water pressure at 150 Degrees F
  • 150 psi WSP maximum steam pressure
  • 300 psi maximum operating pressure
  • Temperature range: -20 Degrees F to 406 Degrees F
  • Seal material: PTFE
  • Seat material: Bronze
  • Mounting orientation: Horizontal or vertical
  • Overall length: 3.31 in.
  • Standards: MSS SP-80 Type 4
  • Valve series: 1510T
