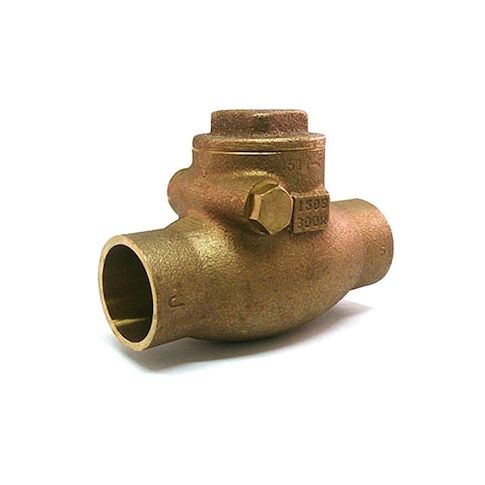

1" Solder Bronze Swing Check Valve MPN:1510T 1
Free Shipping
In Stock
The Milwaukee 1in Solder Bronze Swing Check Valve is a reliable and versatile solution for various industrial applications. Its single-flow design and inline swing mechanism make it easy to install and maintain in horizontal or vertical positions. This valve is ideal for use in water supply systems, HVAC, and steam distribution, with a maximum water pressure of 300 psi and a maximum steam pressure of 150 psi WSP. Its PTFE seal and bronze construction ensure durability and resistance to corrosion, while its temperature range of -20 to 406°F makes it suitable for a wide range of environments.
Top product features:
- 1in Solder Bronze Swing Check Valve
- Inline swing design allows for easy installation and maintenance
- PTFE seal material provides a secure and leak-free connection
Top product applications:
- Industrial water treatment systems
- Plumbing in commercial and residential buildings
- Steam power plants
The MILWAUKEE VALVE 1510T is a 1 in. bronze swing check valve with solder sweat x sweat connections. It uses an inline swing mechanism for one-way flow/backflow-control applications in general-purpose piping systems handling gas, oil, steam, and water. The valve features a full-flow design, PTFE seal, and bronze seat, and is listed for horizontal or vertical installation.
Key Features:
- Valve type: Swing check valve with inline body style and single-flow design.
- Size and connections: 1 in. nominal valve size with female sweat x sweat solder connections on both ends.
- Body and seat materials: Bronze body with bronze seat.
- Seal and mechanism material: PTFE seal and PTFE check mechanism material.
- Flow rating: 31 gpm with a Cv of 31.
- Cracking pressure: Verify manufacturer specifications for application requirements.
- Pressure ratings: 300 psi at 150 degrees F maximum water pressure
- 150 psi WSP maximum steam pressure
- 300 psi maximum operating pressure.
- Temperature range: -20 degrees F minimum to 406 degrees F maximum operating temperature.
- Dimensions: 4 in. overall length
- 2 in. cap to inlet center height
- 1 31/32 in. cap to inlet center.
- Standards: MSS SP-80 Type 4.
- Valve series: 1510T.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.30
- Package Width: 12.70
- Package Height: 4.80
- Package Weight: 1.32
