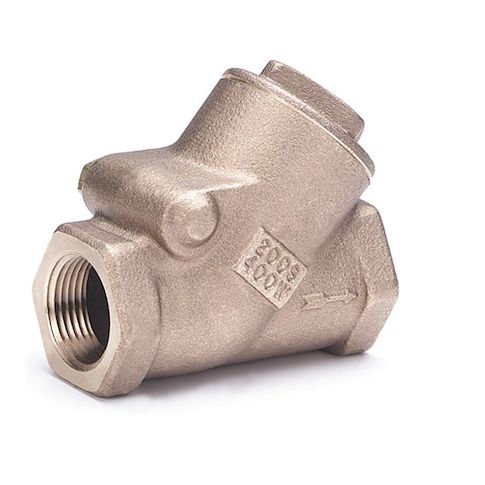

Check Valve, 508 Series, Swing Y, 2 in FNPT x FNPT, Bronze Body MPN:508 2"

• MILWAUKEE VALVE 508 Series 2 in swing Y check valve with a bronze body and swing mechanism for use in compatible general-purpose gas, oil, steam, and water line applications. The Y-style body and full-flow design includes a 131 gpm flow rating with a Cv of 92. Cracking pressure: 0.500 to 0.750 psi. This valve has female NPT threaded connections on both ends and is intended for horizontal mounting.

  Key Features:

  • Valve type: Swing Y check valve with Y-pattern body design.
  • Size and connections: 2 in FNPT x FNPT threaded connections
  • female on both sides.
  • Materials: Cast bronze body with bronze check mechanism, seat, and seal material listed as bronze.
  • Flow performance: Full-flow, single-flow design
  • 131 gpm flow rating and Cv of 92.
  • Cracking pressure: 0.500 to 0.750 psi.
  • Pressure ratings: 400 psi WOG, 400 psi at 150 degrees F water pressure, and 200 psi WSP steam pressure.
  • Temperature range: -20 to 550 degrees F.
  • Dimensions: 5.88 in overall length, 4 in overall height, 4 in cap to inlet center.
  • Mounting orientation: Horizontal.
  • Standard: MSS SP-80 Type 3.
