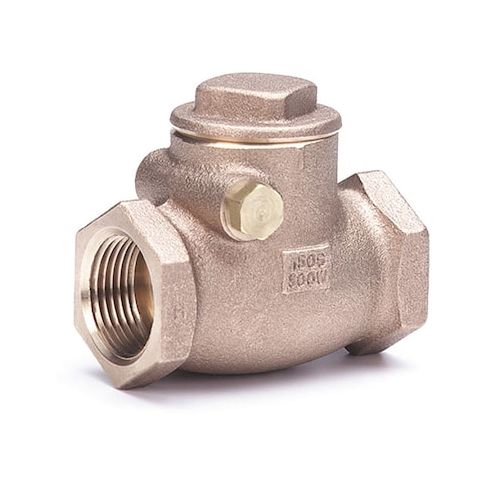

Swing Check Valve, 515 Series, 3/8 in, FNPT x FNPT, Bronze Body MPN:515 3/8"
Free Shipping
In Stock
The Milwaukee 3/8in FNPT Bronze Swing Check Valve is a reliable and efficient solution for various applications, including water supply systems, irrigation, and industrial processes. Its single flow design and inline swing mechanism ensure smooth operation and minimize pressure drop. Constructed from durable bronze, this valve can withstand temperatures from -20°F to 406°F and pressures up to 300 psi. Suitable for horizontal mounting, it is ideal for use in residential, commercial, and industrial settings, providing a reliable check valve solution for a wide range of applications, including water treatment, HVAC, and chemical processing.
Top product features:
- Swing design allows for easy manual operation and maintenance
- Bronze construction provides high-temperature and corrosion resistance
- Cracking pressure is adjustable between 0.500 and 0.750 psi
Top product applications:
- Industrial process control systems
- Water supply systems
- HVAC systems
The MILWAUKEE VALVE 515 is a 3/8 in. swing check valve with an inline bronze body and FNPT x FNPT connections. It uses a swing mechanism to support flow in one direction and restrict reverse flow in general-purpose piping systems handling gas, oil, steam, or water. This valve features single-flow, full-flow construction with a cracking pressure of 0.500 to 0.750 psi.
Key Features:
- Valve type: Swing check valve with inline swing mechanism and inline body style
- Size: 3/8 in. nominal valve size with 3/8 in. female NPT connections on both ends
- Body material: Bronze
- Check mechanism material: Brass
- Seat and seal material: Bronze
- Flow capacity: 6 gpm with Cv of 6
- Cracking pressure: 0.500 to 0.750 psi
- Pressure ratings: 300 psi maximum water pressure at 150 degrees F
- 150 psi WSP maximum steam pressure
- Temperature range: -20 degrees F to 406 degrees F
- Mounting orientation: Horizontal
- Overall dimensions: 2.13 in. length
- 1 7/16 in. height
- Standards: MSS SP-80 Type 3
- Valve series: 515
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.80
- Package Height: 1.30
- Package Weight: 0.49
