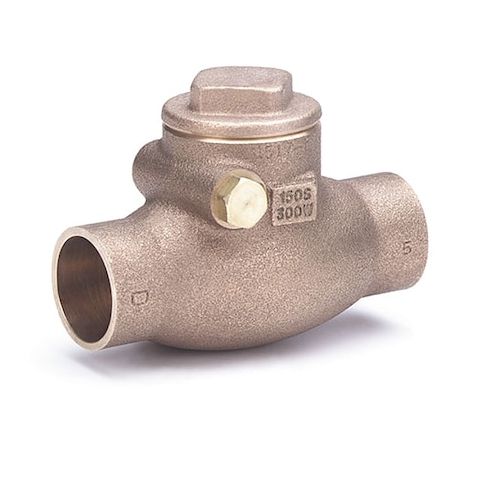

2-1/2" Solder Bronze Swing Check Valve MPN:1509 2-1/2"
Free Shipping
In Stock
This 2-1/2in Solder Bronze Swing Check Valve from Milwaukee is designed for reliable flow control in industrial applications. Its single flow design and inline swing mechanism provide efficient operation, while the bronze body and seal materials ensure durability and resistance to corrosion. Suitable for use in horizontal mounting orientations, this valve can withstand temperatures up to 406°F and water pressures up to 200 psi. Ideal for plumbing, HVAC, and industrial piping systems, this check valve offers reliable flow control and is built to withstand demanding conditions.
Top product features:
- 2-1/2in Solder Bronze Swing Check Valve allows for one-way flow control.
- The valve has a single flow design to prevent backflow.
- The valve is designed for inline swing operation.
Top product applications:
- Water treatment systems
- Steam power plants
- Industrial process control systems
MILWAUKEE VALVE 1509 is a 2-1/2 in bronze swing check valve with solder sweat x sweat female connections. It uses an inline swing mechanism to support one-way flow applications and reverse-flow control in compatible gas, oil, steam, or water piping applications within the listed pressure and temperature ratings. The valve is configured for horizontal mounting.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 2-1/2 in nominal valve and pipe size
- Body, seat, seal, and check mechanism material: Bronze
- Connections: Solder sweat x sweat female connections on both sides
- Flow capacity: 192 gpm with Cv of 233.8
- Cracking pressure: 0.500 to 0.750 psi
- Pressure ratings: 125 psi SWP
- 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F
- maximum steam pressure 125 psi WSP
- Temperature range: -20 degrees F to 406 degrees F
- Mounting orientation: Horizontal
- Dimensions: 7 3/8 in length
- 3 5/8 in overall height/cap to inlet center
- Standards: MSS SP-80 Type 3
- Valve series: 1509
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.60
- Package Width: 9.70
- Package Height: 5.20
- Package Weight: 7.35
