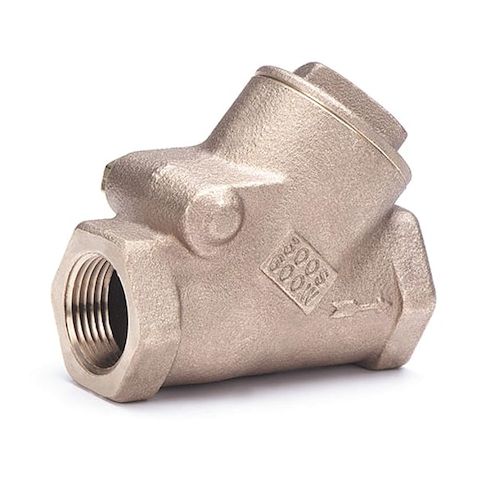

Swing Y Check Valve, 507 Series, 1/2 in, FNPT x FNPT, Bronze Body MPN:507 1/2
Free Shipping
In Stock
This 1/2in FNPT Bronze Swing Y Check Valve from Milwaukee is ideal for various applications, including industrial, commercial, and residential use. Its robust design and durable construction ensure reliable performance in high-pressure systems, making it suitable for water and steam applications. The valve's horizontal and vertical mounting orientation flexibility allows for easy installation in tight spaces. Its high-temperature resistance up to 550°F and wide pressure range make it a versatile solution for a range of industries, including HVAC, plumbing, and manufacturing.
Top product features:
- It swings open to allow flow in both directions, then closes to prevent backflow.
- It is designed to handle high water pressure up to 600 psi at 150°F.
- It is made with a bronze body and bronze seat to provide durability and resistance to corrosion.
Top product applications:
- Water supply systems
- Plumbing systems for residential and commercial buildings
- Industrial process control systems
MILWAUKEE VALVE Series 507 is a 1/2 in swing Y check valve with a bronze body and FNPT x FNPT female threaded connections. It is intended for one-way flow applications in general purpose piping systems handling gas, oil, steam, and water. The Y-style body includes a swing check mechanism for reverse-flow control applications. Flow rate: 10 gpm
- Cv: 7.2.
Key Features:
- Swing Y check valve with single-flow design and Y-style body
- 1/2 in nominal valve size with 1/2 in FNPT x FNPT connections
- Female NPT connections on both ends
- Cast bronze body with bronze check mechanism and bronze seat
- Cracking pressure: 0.750 to 1.000 psi
- Flow rate: 10 gpm
- Cv: 7.2
- Maximum water pressure: 600 psi at 150 Degrees F
- Maximum steam pressure: 300 psi WSP
- Maximum pressure: 300 psi SWP - 600 psi WOG
- Operating temperature range: -20 Degrees F to 550 Degrees F
- Mounting orientation: horizontal or vertical
- Overall length: 2.63 in
- Cap to inlet center: 1 3/4 in
- Standard check design
- no counterweight
- Standards: ASTM A276 TY.304, ASTM B16, ASTM B61, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.50
- Package Height: 1.60
- Package Weight: 0.89
