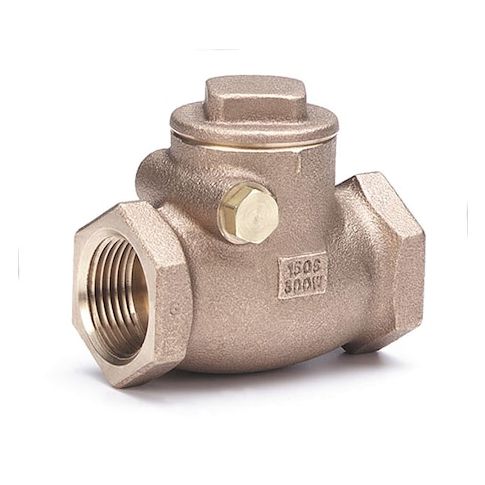

Swing Check Valve, 510T Series, 1 in, FNPT x FNPT, Inline, Bronze MPN:510T 1
Free Shipping
In Stock
The 1in FNPT Bronze Swing Check Valve from Milwaukee is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical positions, this check valve features a single flow design and a bronze body for durability. Its PTFE seal ensures a tight seal, while its bronze seat and body materials provide resistance to corrosion and wear. With a maximum temperature rating of 406°F and a maximum water pressure of 300 psi, this valve is ideal for use in water treatment, chemical processing, and HVAC systems, as well as in applications where high-temperature steam is present.
Top product features:
- Swing design allows for easy manual operation
- PTFE seal material provides long-lasting corrosion resistance
- Bronze construction enables high-temperature operation up to 406 Degrees F
Top product applications:
- Water supply systems
- Steam distribution systems
- Hydraulic systems
The MILWAUKEE VALVE 510T is a 1 in. swing check valve with an inline bronze body and FNPT x FNPT threaded connections. It uses a hinged swing mechanism for one-direction flow and backflow control applications in general-purpose piping systems handling gas, oil, steam, and water. This valve features a full-flow design, a 31 gpm flow rating, and a Cv of 31.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 1 in. nominal valve size with 1 in. FNPT x FNPT connections
- Body material: Bronze
- Check mechanism: Swing with PTFE check mechanism material
- Seal material: PTFE
- Seat material: Bronze
- Flow rating: 31 gpm
- Cv: 31
- Cracking pressure: 0.750 to 1.000 psi
- Pressure ratings: 300 psi maximum operating pressure
- 300 psi at 150 degrees F maximum water pressure
- 150 psi WSP maximum steam pressure
- Temperature range: -20 degrees F to 406 degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 3.25 in.
- Standards: ASTM B16, ASTM B62, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.00
- Package Height: 1.90
- Package Weight: 1.42
