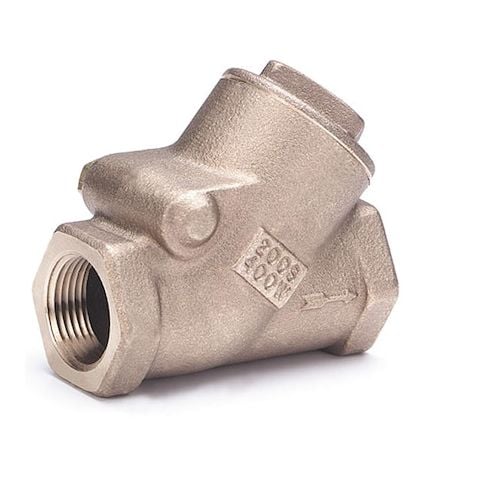

Swing Y Check Valve, 508 Series, 3/8 in, FNPT x FNPT, Bronze Body MPN:508 3/8"
Free Shipping
In Stock
The Milwaukee 3/8in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for various industrial applications. Suitable for use in horizontal mounting orientations, this valve features a single-flow design and a Y swing mechanism, ensuring smooth and unidirectional flow. Constructed from durable bronze, it can withstand extreme temperatures from -20°F to 550°F and pressures up to 400 psi. Ideal for use in water supply systems, this valve offers benefits such as reduced backflow and improved system efficiency. Its compact size and chrome-cobalt seals make it a great choice for applications in chemical processing, HVAC, and plumbing.
Top product features:
- It has a single flow design for efficient fluid flow.
- It is a Y swing check valve, allowing for easy installation and flexibility in pipe connections.
- It has a chrome, cobalt seal for durability and resistance to corrosion.
Top product applications:
- Water supply systems
- Steam power systems
- Industrial piping systems
The MILWAUKEE VALVE 508 is a 3/8 in. swing Y check valve with a cast bronze body and FNPT x FNPT threaded connections. It is intended for use in one-way flow applications in gas, oil, steam, and water piping systems. The Y-style body and swing mechanism are specified with Cv 4.3 and rated flow of 6 gpm, with a cracking pressure of 0.500 to 0.750 psi.
Key Features:
- Valve type: Swing Y check valve with Y-style body and swing check mechanism.
- Size and connections: 3/8 in. nominal valve size with female 3/8 in. NPT connections on both sides.
- Body and internal materials: Cast bronze body with bronze check mechanism, seat, and seal material.
- Flow capacity: Cv 4.3 and rated flow of 6 gpm.
- Pressure ratings: 400 psi WOG, 200 psi SWP/WSP, and 400 psi at 150 degrees F maximum water pressure.
- Temperature range: -20 degrees F minimum to 550 degrees F maximum.
- Installation: Horizontal mounting orientation.
- Standard: MSS SP-80 Type 3.
- Dimensions: 2.25 in. overall length and 1 5/8 in. overall height/cap to inlet center.
- Design details: Single flow design, standard check configuration, and no counterweight.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 10.30
- Package Width: 5.00
- Package Height: 2.40
- Package Weight: 7.00
