3/8" Solder Bronze Swing Check Valve MPN:1509 3/8"

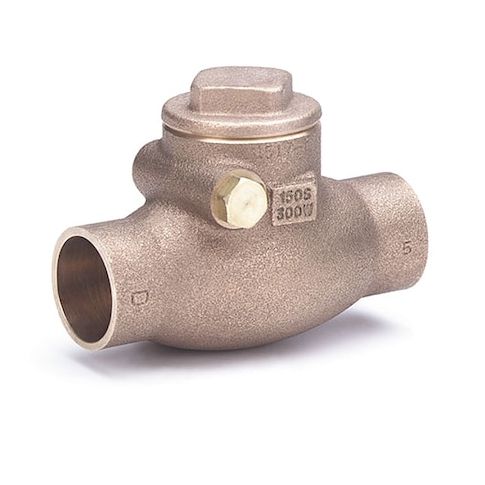

The MILWAUKEE VALVE 1509 3/8 in. solder bronze swing check valve is an inline check valve configured for single-direction flow applications with reverse-flow checking. It features a bronze body with a brass swing mechanism and is rated for use with gas, oil, steam, and water. The valve has 3/8 in. female sweat x sweat solder connections and is intended for horizontal mounting.

Key Features:

• Swing check design: Inline swing mechanism with single-flow design.
• Body and internal materials: Bronze body, bronze seat and seal, with a brass check mechanism.
• Connection type: 3/8 in. female sweat x sweat solder connections.
• Flow and opening pressure: 6 gpm flow rating, Cv of 6, and 0.5 psi cracking pressure (0.500 to 0.750 psi range listed).
• Pressure ratings: 200 psi water pressure at 150 Degrees F, 125 psi WSP steam pressure, and 125 psi SWP / 200 psi WOG maximum pressure.
• Temperature range: -20 Degrees F minimum to 406 Degrees F maximum operating temperature.
• Mounting and form: Horizontal mounting orientation, inline body style, full-flow body style, no counterweight.
• Dimensions: 2 1/4 in. overall length and 1 7/16 in. overall height.
• Standard: MSS SP-80 Type 3.
• Valve series: 1509.
