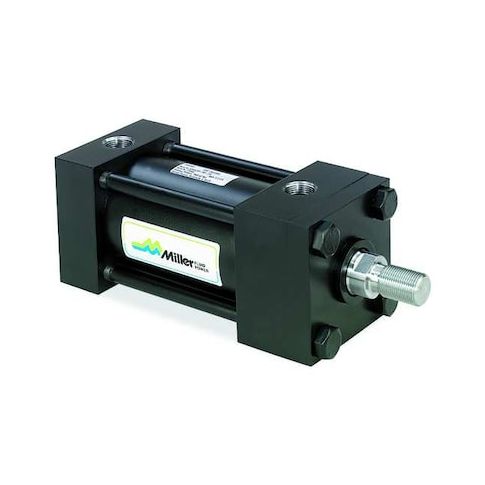

Hydraulic Cylinder, 12 in Stroke L MPN:1HHV3B40012000
Hydraulic Cylinder, 12 in Stroke L
This hydraulic cylinder from Miller is designed for heavy-duty applications, featuring a 4-inch bore diameter, 1 3/4-inch rod diameter, and a maximum pressure rating of 2,500 psi. With a temperature range of -10 to 165 F, it can withstand demanding environments. The cylinder is built with durable materials, including steel, stainless steel, and polyurethane, ensuring long-lasting performance. Suitable for use in industries such as manufacturing, construction, and oil and gas, this hydraulic cylinder provides reliable operation and efficient energy transfer. Its compact design and customizable options make it an ideal choice for a variety of applications, from material handling to heavy machinery.
Top product features:
- Steel piston provides durability and resistance to wear and tear.
- Polyurethane rings ensure a secure seal and prevent fluid leaks.
- Stainless steel piston rod offers high resistance to corrosion and improved performance in harsh environments.
Top product applications:
- Industrial machinery manufacturing
- Construction equipment manufacturing
- Material handling equipment manufacturing
Hydraulic Cylinder, NFPA Tie-Rod, Bore Dia. 4 in, Stroke Length 12 in, Rod Dia. 1 3/4 in, Retracted Length 19 5/8 in, Port Size 3/4 in NPT, Extended Length 31 5/8 in, Max. Pressure 2,500 psi, Temp. Range -10 to 165 F, Piston Material Steel, Piston Rod Material Stainless Steel, Ring Material Polyurethane, Tube Material Steel, Wear Band Material Non-Metallic, Body Material Steel, Tie Rods Steel, Finish Black Painted, Standards NFPA, Includes None
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 23.10
- Package Height: 7.10
- Package Weight: 64.50
Product info last updated on February 28, 2026 10:19am UTC
Category: Hydraulic Cylinders and Equipment
