Hydraulic Cylinder, 20mm Bore, 10mm Stroke MPN:1H000065945

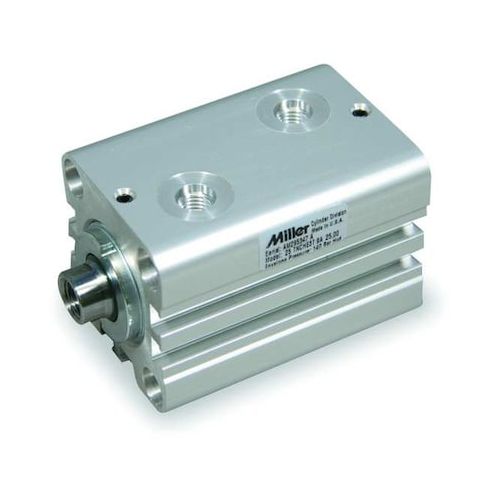

Hydraulic Cylinder, 20mm Bore, 10mm Stroke
This compact hydraulic cylinder from Miller is designed for a wide range of applications, including robotics, aerospace, and medical devices. Its small size and lightweight aluminum body make it ideal for use in tight spaces and weight-sensitive systems. With a maximum pressure of 2,030 psi and a maximum push capacity of 989.2 pounds, this cylinder is capable of delivering precise and controlled motion. Its double-acting design allows for both extension and retraction, making it suitable for applications requiring bidirectional movement.
Top product features:
- Double Acting design allows for simultaneous extension and retraction of the piston
- Compact Aluminum Body Material provides a lightweight and durable construction
- Max. Push Capacity of 989.2 lb enables the cylinder to handle heavy loads
Top product applications:
- Automotive suspension systems
- Construction equipment hydraulic systems
- Medical equipment control systems
Compact Hydraulic Cylinder, Double Acting, Bore Dia. 20 mm, Stroke Length 10 mm, Port Size #2 SAE, Rod Dia. 12 mm, Rod Thread Size 5/16 In.-24, Retracted Length 64 mm, Max. Pressure 2,030 psi, Aluminum Body Material, Aluminum Piston Material, Extended Length 74 mm, Max. Push Capacity 989.2 lb
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.50
- Package Height: 4.10
- Package Weight: 0.65
