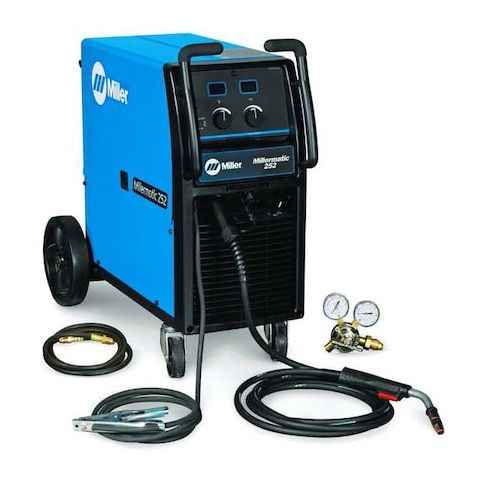

Millermatic 252 MIG Welder (907322) MPN:907322

• The MILLER ELECTRIC 907322 Millermatic 252 MIG Welder is a single-phase, DC-powered wire feed welding machine designed for MIG (GMAW) and Flux-Cored (FCAW) processes. It operates within an output range of 30 to 300 amps DC and supports input voltages of 220/230/240V AC, 460/480V AC, and 575V AC at 60 Hz. The unit accommodates both mild steel and aluminum materials, handling thicknesses from 22 gauge up to 1/2 inch for mild steel and 14 gauge to 3/8 inch for aluminum. With a rated output of 200A at 28V (60%) and 250A at 28V (40%), this welder provides flexibility for various metalworking requirements. The machine includes essential accessories and comes mounted on wheels for mobility.

  Key Features:

  • - Series and Model: Millermatic 252, Model 907322
  • - Welding Processes: MIG (GMAW) and Flux-Cored (FCAW) welding
  • - Output Range: 30 to 300A DC
  • Duty Cycle 60% at 200A, 40% at 250A
  • - Input Power: Operates on 220/230/240V AC, 460/480V AC, or 575V AC single-phase
  • 60 Hz frequency
  • - Polarity: DC constant voltage (CV) mode
  • - Material Compatibility: Mild steel, stainless steel, and aluminum
  • - Wire Diameter Capacity: 0.023 to 0.045 in depending on wire type
  • - Wire Feed Speed: 50 to 700 in/min
  • - Included Components: M-25 MIG gun (15 ft, 250A), work cable with clamp (10 ft), argon mix regulator with hose, extra contact tips, dual-groove drive rolls, running gear, and consumable compartment
  • - Features: Infinite voltage control with digital meters, integrated timer menu, Auto-Gun Detect, dual gear-driven aluminum drive system, line voltage compensation, single low cylinder rack
  • - Dimensions and Weight: 30 in H × 19 in W × 40 in D
  • 205 lb
  • - Standards: CSA Certified
  • - Portability: Wheeled-mounted configuration with 10 ft power cord and 6-50P plug type
