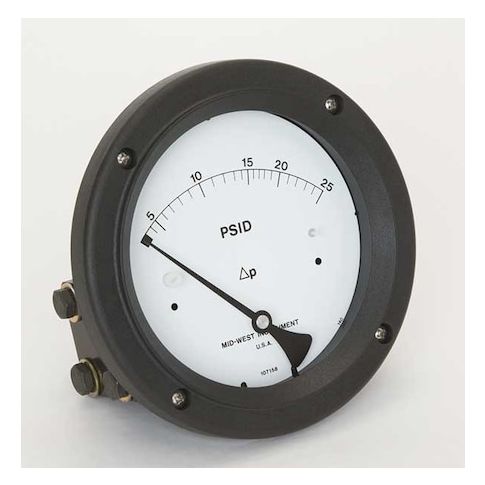

Pressure Gauge, 0 to 25 psi MPN:142-AC-00-OO-25P
Pressure Gauge, 0 to 25 psi
Monitor pressure levels with precision and accuracy using this reliable 0-25 psi pressure gauge from Midwest. Ideal for industrial and commercial applications, this gauge is perfect for monitoring pressure in systems, tanks, and vessels. With a high accuracy rating of +/-3-2-3% and a durable aluminum body, this gauge provides reliable measurements in a wide range of temperatures (-40 to 200°F). The compact design and easy-to-read dial make it simple to install and use, while the 5-year warranty offers peace of mind. Suitable for use in chemical plants, manufacturing facilities, and laboratories, this gauge is a valuable addition to any pressure monitoring system.
Top product features:
- Pressure gauge measures pressure up to 25 psi
- Differential pressure gauge indicates pressure differences up to 25 PSID
- Gauge has a total pressure rating of 3000 PSIG
Top product applications:
- Pressure Gauge, 0 to 25 psi, can be used in a hydraulic system to monitor pressure levels.
- Pressure Gauge, 0 to 25 psi, is suitable for use in a compressed air system to measure pressure.
- Pressure Gauge, 0 to 25 psi, can be applied in a pneumatic system to monitor pressure levels.
Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 25 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 4-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 8.40
- Package Height: 4.60
- Package Weight: 2.45
Product info last updated on February 2, 2026 6:16am UTC
Category: Pressure and Vacuum Measuring
