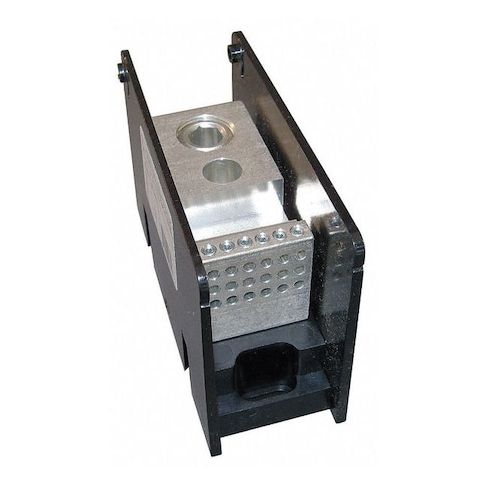

Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB67491
Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing power distribution in a variety of applications. Suitable for use with both aluminum and copper conductors, this block features a 1-pole design with a maximum current rating of 380A and a maximum voltage of 1,000V AC/DC. Its compact size and surface-mount design make it ideal for use in industrial and commercial settings, including data centers, manufacturing facilities, and power distribution systems. By streamlining power distribution, this block helps reduce energy losses, improve system efficiency, and ensure safe and reliable operation.
Top product features:
- Power Distribution Block is designed for use with copper conductors.
- It can handle line copper wire sizes from 4 AWG to 500 kcmil.
- It can handle load copper wire sizes from 14 AWG to 10 AWG.
Top product applications:
- Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw from Mersen is used in Industrial Settings for High Power Applications.
- Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw from Mersen is used in Data Centers for Power Distribution and Redundancy.
- Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw from Mersen is used in Renewable Energy Systems for Power Inverters and DC-DC Converters.
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 18, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3.25 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 75 days
- Minimum Order Quantity: 18
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 5.50
- Package Height: 3.70
- Package Weight: 4.82
Product info last updated on February 16, 2026 12:41pm UTC
Category: Electrical Connectors
