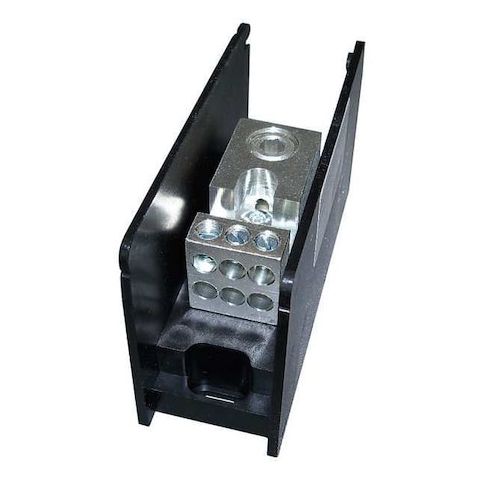

Power Distribution Block, Open, 1 Pole, 310 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB67661
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5364396
Power Distribution Block, Open, 1 Pole, 310 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing power distribution in various applications. Its 310A current rating and 1,000V AC/DC voltage rating make it suitable for use in heavy-duty electrical systems. The block features six load connections and one line connection, accommodating a range of copper wire sizes from 14 AWG to 2 AWG and 6 AWG to 350 kcmil, respectively. This product is ideal for use in industrial settings, such as manufacturing facilities, data centers, and power plants, where high-power distribution is required. Its surface-mount design and compact size make it easy to integrate into existing systems.
Top product features:
- Power Distribution Block distributes power to multiple loads
- Has six load connections per pole
- Accepts copper wire sizes from 14 AWG to 2 AWG for load connections
Top product applications:
- Main Power Distribution
- Switchgear and Panel Building
- Industrial Power Distribution
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 6, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.25 in, Overall Length 3.08 in, Overall Width 1.85 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.31
- Package Width: 5.06
- Package Height: 3.31
- Package Weight: 3.24
Product info last updated on February 24, 2026 8:05am UTC
Category: Electrical Connectors
