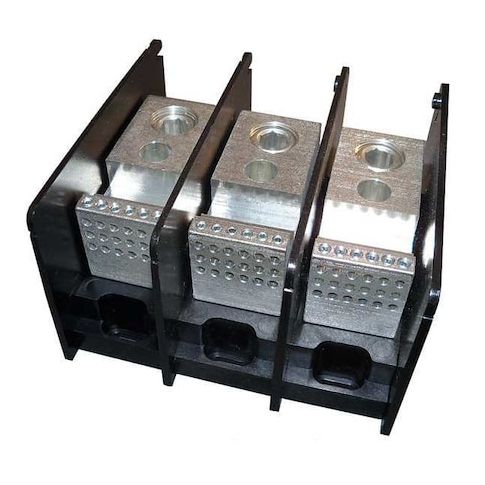

Power Distribution Block, Open, 3 Pole, 380 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB67493
Power Distribution Block, Open, 3 Pole, 380 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for power distribution in industrial and commercial applications. With a maximum current rating of 380 A and a maximum voltage of 1,000 V AC/DC, this block can handle high-power loads with ease. Its 3-pole design allows for easy connection and disconnection of lines and loads, making it ideal for use in switchgear, motor control centers, and other high-power distribution systems. The block's compact size and surface-mount design make it easy to integrate into existing systems, providing a reliable and efficient solution for power distribution needs.
Top product features:
- Power Distribution Block accommodates line copper wire sizes from 4 AWG to 500 kcmil
- Power Distribution Block supports a maximum current of 380 A for copper conductors
- Power Distribution Block features 18 load connections on the load side
Top product applications:
- Main Power Distribution Panel
- Electrical Substation
- High-Power Equipment Installation
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 18, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 3, Overall Depth 3.25 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.31
- Package Width: 5.06
- Package Height: 3.31
- Package Weight: 4.12
Product info last updated on February 5, 2026 8:35am UTC
Category: Electrical Connectors
