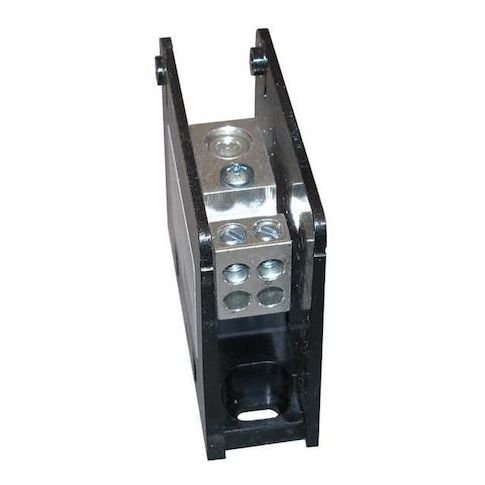

Power Distribution Block, Open, 1 Pole, 175 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB63131
Power Distribution Block, Open, 1 Pole, 175 A Copper, 1, 000 V AC/DC, Screw
This Power Distribution Block is a reliable and efficient solution for managing power distribution in a variety of applications. With a maximum current rating of 175A and a voltage rating of 1,000V AC/DC, it can handle demanding power requirements. Suitable for use in industrial settings, it features a surface mount design and is compatible with copper wire sizes from 14 AWG to 2/0 AWG. The block's four load connections make it ideal for applications where multiple devices need to be powered. Its compact size and high current rating make it a valuable addition to any power distribution system.
Top product features:
- Power Distribution Block distributes power to multiple loads from a single line connection.
- It accommodates copper wire sizes from 14 AWG to 2/0 AWG for line connections and from 14 AWG to 4 AWG for load connections.
- It is designed for surface mounting.
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Residential electrical panelboards
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 4, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 2.81 in, Overall Length 3.08 in, Overall Width 1.05 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 3.60
- Package Height: 3.20
- Package Weight: 1.39
Product info last updated on February 27, 2026 10:57pm UTC
Category: Electrical Connectors
