Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB69081
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5258531

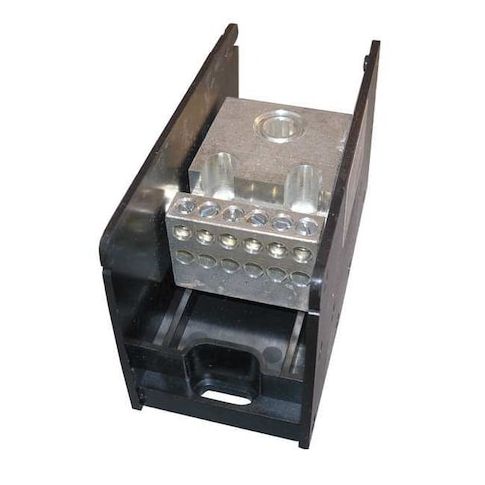

Power Distribution Block, Open, 1 Pole, 380 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing power distribution in a variety of applications. Designed for surface mounting, this 1-pole block is capable of handling up to 380A of current and withstanding 1,000V AC/DC. It features 12 load connections for copper wire sizes between 14 AWG and 4 AWG, making it ideal for use in commercial and industrial settings. The block's compact size and high current rating make it perfect for use in electrical panels, switchboards, and other high-power applications where reliable power distribution is critical.
Top product features:
- Power Distribution Block has 12 load connections per pole for flexible wiring configurations.
- Power Distribution Block is designed for use with copper wire sizes from 4 AWG to 500 kcmil for line connections and 14 AWG to 4 AWG for load connections.
- Power Distribution Block has a maximum current rating of 380 A for copper conductors.
Top product applications:
- Main Bus Bar in a Data Center
- Power Distribution in a Commercial Building
- Industrial Power Distribution
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 12, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 1, Overall Depth 3.55 in, Overall Length 5.7 in, Overall Width 2.73 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 2.81
- Package Height: 6.20
- Package Weight: 1.20
Product info last updated on April 24, 2026 9:52pm UTC
Category: Electrical Connectors
