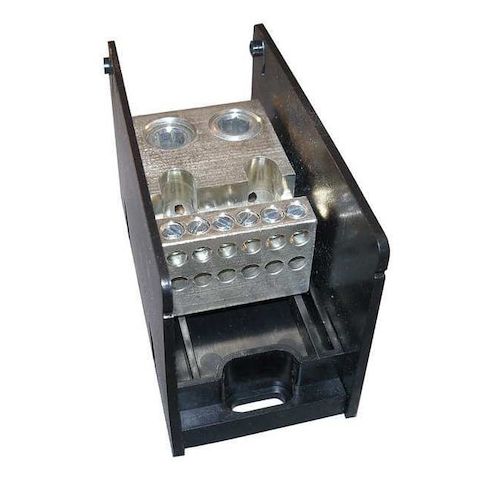

Power Distribution Block, Open, 1 Pole, 760 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB69111
Power Distribution Block, Open, 1 Pole, 760 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing power distribution in a variety of applications, including industrial and commercial settings. With a maximum current of 760 A and a maximum voltage of 1,000 V AC/DC, this block is designed to handle high-power loads. Its compact design and surface-mounting capability make it ideal for use in tight spaces. The block features 12 load connections and 2 line connections, making it suitable for a range of applications, including power distribution panels, motor control centers, and electrical switchgear. It is also suitable for use with aluminum and copper conductors.
Top product features:
- Power Distribution Block has a maximum current rating of 760 A for copper conductors.
- Power Distribution Block supports line connections for copper wire sizes from 4 AWG to 500 kcmil.
- Power Distribution Block has 12 load connections for copper wire sizes from 14 AWG to 4 AWG.
Top product applications:
- Power distribution in industrial settings
- Main panel or breaker box in commercial buildings
- High-amperage connections in electrical substations
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 12, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 760 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3.55 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 75 days
- Minimum Order Quantity: 18
- Unit of Measure: EA
- Package Length: 13.25
- Package Width: 5.69
- Package Height: 4.00
- Package Weight: 6.90
Product info last updated on February 8, 2026 4:02pm UTC
Category: Electrical Connectors
