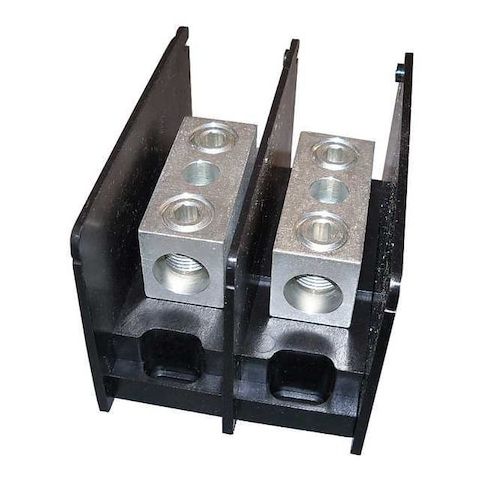

Power Distribution Block, Open, 2 Pole, 310 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB67002
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5258504
Power Distribution Block, Open, 2 Pole, 310 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for distributing power in industrial applications. With a maximum current rating of 310 A and a maximum voltage of 1,000 V AC/DC, this block is suitable for a wide range of uses, including electrical panels, switchgear, and motor control centers. Its copper construction ensures excellent conductivity and heat dissipation, making it ideal for high-power applications. The block's compact design and surface-mount installation make it easy to integrate into existing systems, reducing installation time and costs. Suitable for use with copper wire sizes from 6 AWG to 350 kcmil.
Top product features:
- Power Distribution Block can handle copper conductors up to 310 A
- Power Distribution Block is rated for 1,000 V AC/DC
- Power Distribution Block has 2 poles for line and load connections
Top product applications:
- Industrial electrical panel construction
- Commercial building power distribution systems
- Heavy-duty machinery and equipment installations
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 2, Overall Depth 3.25 in, Overall Length 3.08 in, Overall Width 3.57 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.31
- Package Width: 5.06
- Package Height: 3.31
- Package Weight: 2.85
Product info last updated on February 26, 2026 7:55pm UTC
Category: Electrical Connectors
