Power Distribution Block, Open, 3 Pole, 310 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB67003
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5258486

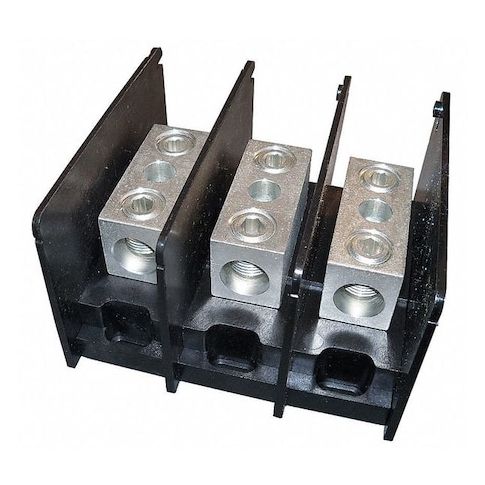

Power Distribution Block, Open, 3 Pole, 310 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing high-power electrical systems. Designed for use in applications such as data centers, industrial facilities, and commercial buildings, this 3-pole power distribution block can handle up to 310A of current and 1,000V AC/DC. Constructed with copper and aluminum materials, it provides excellent conductivity and durability. Its compact design makes it ideal for surface mounting, and its versatility allows for use with a wide range of wire sizes. With its high-performance capabilities and robust construction, this power distribution block is a valuable addition to any electrical system.
Top product features:
- Power Distribution Block is designed for use with aluminum conductors.
- The product has three pole connections for line and load connections.
- The product is rated for a maximum current of 310 A with copper conductors.
Top product applications:
- Power Distribution in Industrial Settings
- Main Bus Bar in Electrical Panels
- High-Current Power Supply in Data Centers
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 1, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 3, Overall Depth 3.25 in, Overall Length 3.08 in, Overall Width 5.28 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.31
- Package Width: 5.06
- Package Height: 3.31
- Package Weight: 2.80
Product info last updated on February 20, 2026 3:13pm UTC
Category: Electrical Connectors
