Power Distribution Block, Open, 3 Pole, 175 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB63133
Power Distribution Block, Open, 3 Pole, 175 A Copper, 1, 000 V AC/DC, Screw

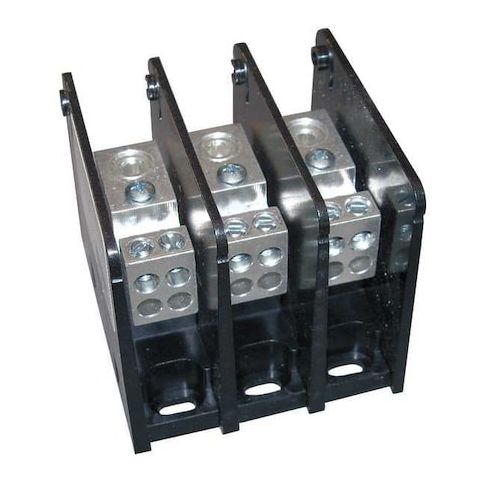

This Power Distribution Block is a reliable and efficient solution for managing power distribution in a variety of applications, including industrial, commercial, and residential settings. With a maximum current rating of 175A and a maximum voltage of 1,000V AC/DC, it provides a safe and secure connection point for copper conductors. The block features 3 poles for line connections and 4 poles for load connections, accommodating wire sizes from 14 AWG to 2/0 AWG for lines and 14 AWG to 4 AWG for loads. Its compact design and surface mount installation make it ideal for use in tight spaces.
Top product features:
- Power Distribution Block has 3 poles for line connections.
- Power Distribution Block has 4 poles for load connections.
- Power Distribution Block can handle maximum current of 175 A.
Top product applications:
- Panelboards
- Switchgear
- Motor Control Centers
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 4, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 3, Overall Depth 2.81 in, Overall Length 3.08 in, Overall Width 2.91 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.75
- Package Width: 3.13
- Package Height: 2.88
- Package Weight: 1.04
Product info last updated on February 10, 2026 6:38pm UTC
Category: Electrical Connectors
