Power Distribution Block, Open, 3 Pole, 175 A Copper, 1, 000 V AC/DC, Screw MPN:MPDB63193
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5258452

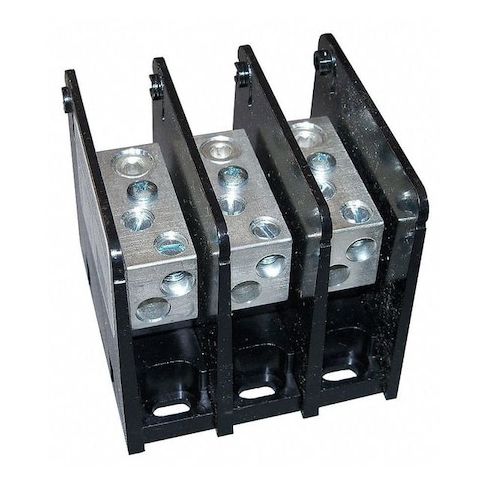

Power Distribution Block, Open, 3 Pole, 175 A Copper, 1, 000 V AC/DC, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing power distribution in a variety of applications. Suitable for use in both AC and DC systems, this 3-pole block can handle up to 175A of current and 1,000V of voltage. Its copper construction ensures optimal heat dissipation and conductivity, making it ideal for use with copper wire sizes ranging from 14 AWG to 2/0 AWG. Perfect for use in industrial, commercial, or residential settings, this power distribution block is a must-have for any electrical system. Its compact design makes it easy to install and integrate into existing systems.
Top product features:
- Surface mount design allows for easy installation
- Maximum current rating of 175 A supports high-power applications
- Three pole configuration enables simultaneous connection of multiple lines and loads
Top product applications:
- Solar Panel Systems
- Generator Sets
- Industrial Control Panels
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 2, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 3, Overall Depth 2.81 in, Overall Length 3.08 in, Overall Width 2.91 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 3.00
- Package Height: 2.80
- Package Weight: 0.55
Product info last updated on February 22, 2026 5:51am UTC
Category: Electrical Connectors
