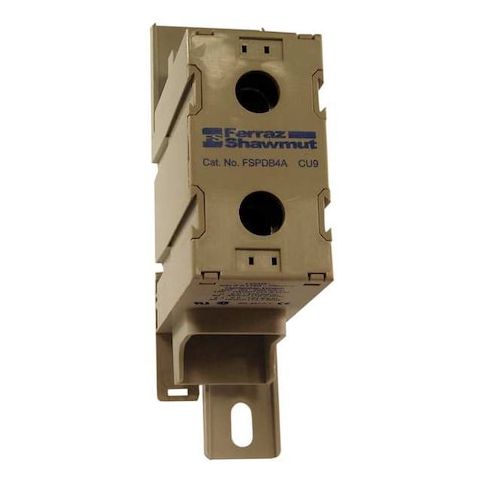

Power Distribution Block, Finger-Safe, 1 Pole, 335 A Copper, 1, 500 V DC, DIN Rail, Screw MPN:FSPDB4A
Power Distribution Block, Finger-Safe, 1 Pole, 335 A Copper, 1, 500 V DC, DIN Rail, Screw
The Mersen Power Distribution Block is a reliable and efficient solution for managing power in a variety of applications. Designed for use with copper conductors, this block features a maximum current rating of 335 A and a maximum voltage of 1,500 V DC. Its finger-safe design ensures safe and easy installation, while its DIN rail mounting makes it easy to integrate into existing systems. Suitable for use in industrial and commercial settings, this block is ideal for applications such as power distribution, motor control, and renewable energy systems. Its compact design and high performance make it a valuable addition to any power management system.
Top product features:
- Finger-safe design for safe handling and operation
- Capable of withstanding 335 A of current for reliable power distribution
- Mounts on DIN rail for easy installation and space-saving design
Top product applications:
- DC Power Distribution in Industrial Settings
- Motor Control Applications in High-Current Systems
- High-Power DC Power Supplies in Data Centers
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 400 kcmil, Load Connections/Pole 1, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 400 kcmil, Maximum Current - Copper Conductor 335 A, Maximum Voltage 1,500 V DC, Mounting Type DIN-Rail, Number of Poles 1, Overall Depth 3.15 in
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 1.60
- Package Height: 3.30
- Package Weight: 0.64
Product info last updated on January 14, 2026 11:54pm UTC
Category: Electrical Connectors
