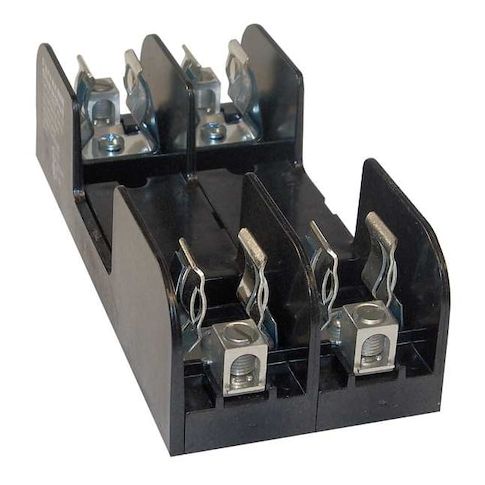

Open Fuse Block, H; K5 UL Class, 600V AC/DC Volt Rating, 2 Poles, Box Lug MPN:60657
Open Fuse Block, H; K5 UL Class, 600V AC/DC Volt Rating, 2 Poles, Box Lug
Upgrade your electrical panel with the Mersen Open Fuse Block, designed for high-performance applications. This UL-listed fuse block features a 600V AC/DC rating and accommodates fuse types Class H and K5, ideal for use in industrial and commercial settings. Its open design allows for easy access and maintenance, while the glass-filled polycarbonate body provides durability and resistance to environmental stress. Suitable for applications such as motor control, power distribution, and circuit protection, this fuse block is a reliable choice for demanding electrical systems. Its compact size and bolt-down mounting style make it easy to integrate into existing panels.
Top product features:
- Open design allows for easy access and maintenance of the fuse block
- Non-indicating design does not provide a visual indication of fuse status
- Spring-reinforced clip secures wire connections and prevents loose connections
Top product applications:
- Electrical Panel Upgrade
- Industrial Machinery Protection
- High-Voltage Power Distribution Systems
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 31 to 60 A, Number of Poles 2, 600V AC/DC, For Fuse Size 5 1/2 in L x 1 1/16 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series 6HKRFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 4 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.12 in, Width 3.16 in, Length 4 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.10
- Package Height: 2.00
- Package Weight: 0.66
Product info last updated on January 15, 2026 8:02am UTC
Category: Fuses and Accessories
