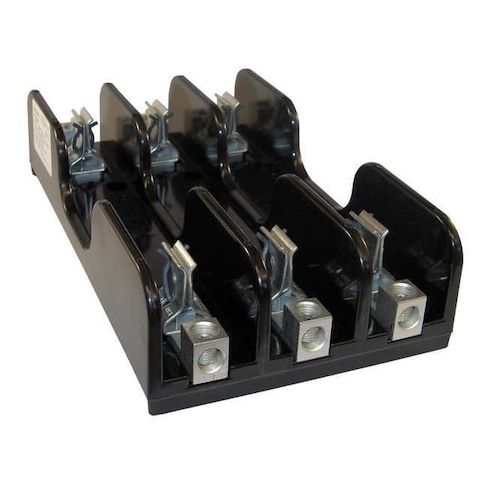

Open Fuse Block, R UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug MPN:61038R
Open Fuse Block, R UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug
The Mersen Open Fuse Block is a reliable and efficient solution for protecting electrical systems against overcurrent conditions. Designed for use with Class R fuses, this 3-pole fuse block is suitable for a wide range of applications, including industrial control panels, switchgear, and motor control centers. Its open design and non-indicating fuse design make it ideal for applications where space is limited. With a 600V AC/DC voltage rating and compatible with multiple fuse series, this fuse block offers flexibility and convenience. Its compact size and bolt-down mounting style make it easy to install and integrate into existing systems.
Top product features:
- Open design allows for easy access and maintenance
- Three-pole configuration enables the use of three separate fuses
- Compatibility with various fuse series (A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series 6HKRFB) provides flexibility in fuse selection
Top product applications:
- General purpose industrial applications
- High-voltage DC power supplies
- Electrical distribution panels
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 61 to 100 A, Number of Poles 3, 600V AC/DC, For Fuse Size 7 7/8 in L x 1 5/16 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series 6HKRFB, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 6 to 2/0 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.48 in, Width 5.8 in, Length 10.08 in, Spring Reinforced Clip Yes
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.40
- Package Width: 6.70
- Package Height: 2.90
- Package Weight: 2.83
Product info last updated on January 15, 2026 7:59am UTC
Category: Fuses and Accessories
