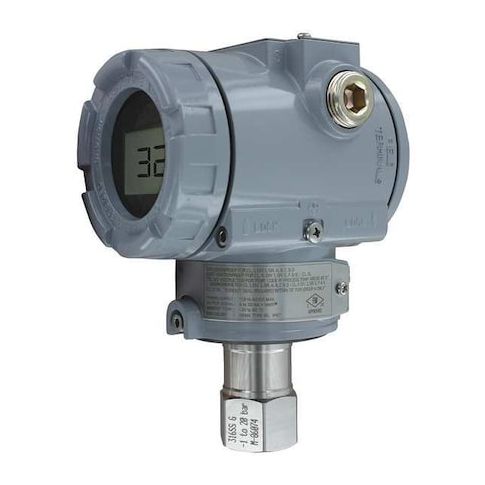

Smart pressure transmitter, range -14.5 to 21 psi with LCD display, (factory set 0 to 21 psig). MPN:3200G-1-FM-1-1-LCD
Smart pressure transmitter, range -14.5 to 21 psi with LCD display, (factory set 0 to 21 psig).
This Smart Pressure Transmitter from Mercoid is a reliable and accurate solution for a variety of industrial applications, including process control and monitoring. Its range of -14.5 to 21 psi with a factory-set 0 to 21 psig range makes it suitable for a range of uses, from low-pressure to high-pressure applications. The transmitter's 4-20mA DC output and HART communication enable seamless integration with other systems. Its rugged design and IP66 rating ensure durability in harsh environments, while its LCD display provides clear and easy-to-read readings. Ideal for use in chemical plants, oil refineries, and other industrial settings.
Top product features:
- Measures pressure in the range of -14.5 to 21 psi with an LCD display.
- Displays pressure readings in psi units on an LCD screen.
- Transmits output as a 4 to 20mA DC signal with HART communication capabilities.
Top product applications:
- Industrial Process Control
- Pressure measurement in chemical processing plants
- Oil and gas wellhead pressure monitoring
Indicating Transmitter, Output 4 to 20mA DC / HART Communication, Process Connection Gender Female, Process Connection Location Back, Process Connection Size 1/2 in, Maximum Pressure 21 psi, Minimum Pressure -14.5 psi, Accuracy +/-0.075 Percent of Full Scale, IP Rating IP66, NEMA Rating NEMA 4X, Display Units psi, Fitting Material 17-4PH Stainless Steel/316 Stainless Steel, Display Screen Type LCD, Wiring Entry (2) 1/2 in FNPT Conduit Connections, Safety Rating Class I Div. 1 Group A, B, C, D
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.40
- Package Width: 6.20
- Package Height: 6.70
- Package Weight: 4.12
Product info last updated on February 2, 2026 4:00pm UTC
Category: Pressure and Vacuum Measuring
