Steam Trap, 2-1/2" NPT Outlet, SS Disc MPN:IB16-10-250
Steam Trap, 2-1/2" NPT Outlet, SS Disc

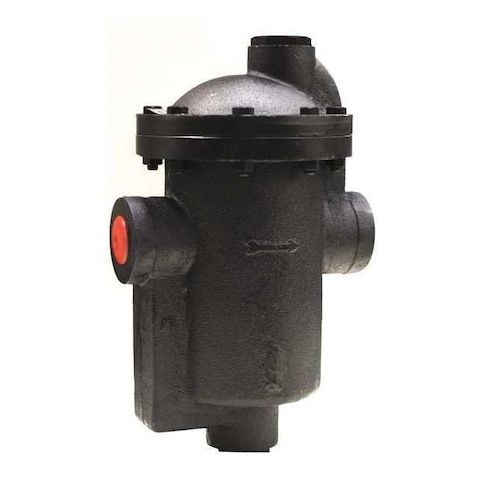

The Mepco Steam Trap is a reliable and efficient solution for various steam applications, including blast coils, water heaters, laundry equipment, and steam kettles. Its stainless steel disc and cast iron body ensure durability and resistance to corrosion, while its non-asbestos fiber gasket and stainless steel float provide long-lasting performance. With a condensate capacity of 19,000 lb/hr and a minimum allowable temperature of 35°F, this steam trap is suitable for a wide range of applications. Its in-line configuration and horizontal installation orientation make it easy to integrate into existing systems.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- Condensate Capacity 19,000 lb/hr
- In-line Configuration with 13 in Distance Between Inlet and Outlet Port
Top product applications:
- Blast Coils
- Water Heaters
- Steam Kettles
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 19,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 13 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 12.00
- Package Height: 26.00
- Package Weight: 135.00
Product info last updated on February 1, 2026 9:06am UTC
Category: HVACR and Appliance Controls
