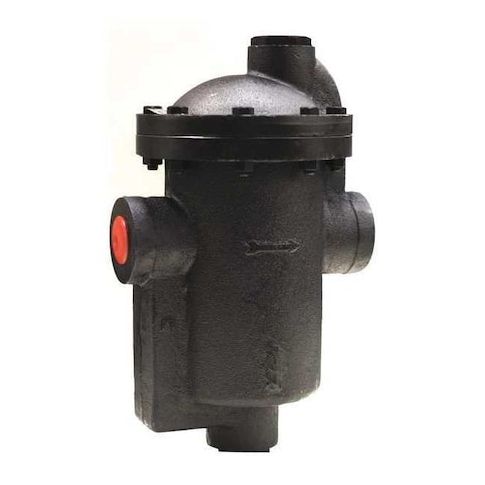

Steam Trap, 2-1/2" NPT Outlet, SS Disc MPN:IB16-10-125
Steam Trap, 2-1/2" NPT Outlet, SS Disc
This Mepco Steam Trap is a reliable solution for managing condensate in various steam-based applications. Suitable for use in blast coils, water heaters, laundry facilities, and steam kettles, it ensures efficient condensate removal and minimizes the risk of water hammer and system damage. With a capacity of 20,000 lb/hr, it can handle high-volume condensate loads. The stainless steel disc and float, combined with a non-asbestos fiber gasket, provide durability and resistance to corrosion. Its compact design and horizontal installation orientation make it easy to integrate into existing systems, ensuring smooth and reliable operation.
Top product features:
- Allows condensate to flow while preventing steam from escaping
- Has a stainless steel disc for corrosion resistance
- Includes an air vent for easy air removal
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 20,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 13 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 12.00
- Package Height: 26.00
- Package Weight: 135.00
Product info last updated on February 1, 2026 12:50pm UTC
Category: HVACR and Appliance Controls
