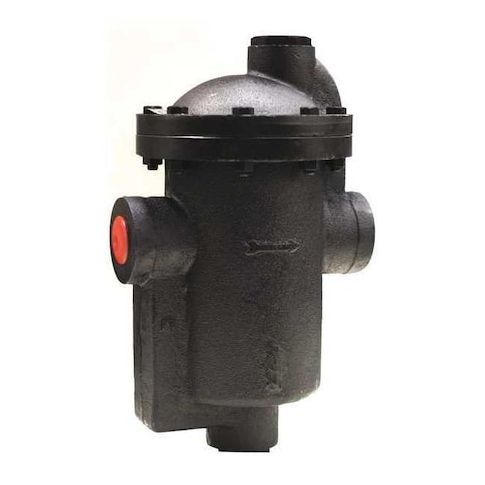

Steam Trap, 2-1/2" NPT Outlet, SS Disc MPN:IB16-10-40
Steam Trap, 2-1/2" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for various steam-powered applications, including blast coils, water heaters, laundry facilities, and steam kettles. Its ability to operate at temperatures as low as 35°F and handle condensate capacities of up to 1,800 lb/hr makes it an ideal choice for high-usage environments. The trap's in-line configuration and horizontal installation orientation ensure easy integration into existing systems. With a stainless steel disc and lever assembly, this steam trap offers long-lasting performance and durability, reducing maintenance costs and downtime. Its compact design and moderate weight make it easy to handle and install.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- Condensate Capacity 1,800 lb/hr
- Stainless Steel Disc and Stainless Steel Lever Assembly
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 1,800 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 13 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 12.00
- Package Height: 26.00
- Package Weight: 135.00
Product info last updated on February 1, 2026 12:33pm UTC
Category: HVACR and Appliance Controls
