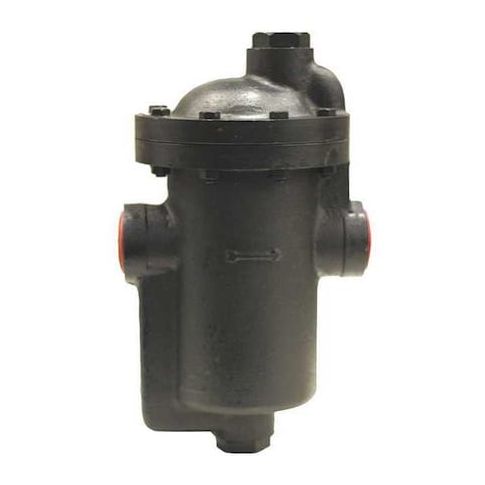

Steam Trap, 1-1/2" NPT Outlet, SS Disc MPN:IB15-6-250
Steam Trap, 1-1/2" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for various steam-based applications, including blast coils, water heaters, laundry facilities, and steam kettles. Its stainless steel disc and cast iron body ensure durability and resistance to corrosion, while the non-asbestos fiber gasket provides a secure seal. With a condensate capacity of 7,000 lb/hr, this steam trap can handle high-volume condensation, reducing the risk of water hammer and energy loss. Its easy installation and maintenance make it a valuable addition to any steam-based system, providing a safe and efficient way to manage steam and condensate.
Top product features:
- Cast Iron Body Material
- Allowable Temperature Minimum 35 Degrees F
- Stainless Steel Disc
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 7,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 10 1/4 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 16 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 12.00
- Package Height: 20.00
- Package Weight: 75.00
Product info last updated on January 29, 2026 6:12am UTC
Category: HVACR and Appliance Controls
