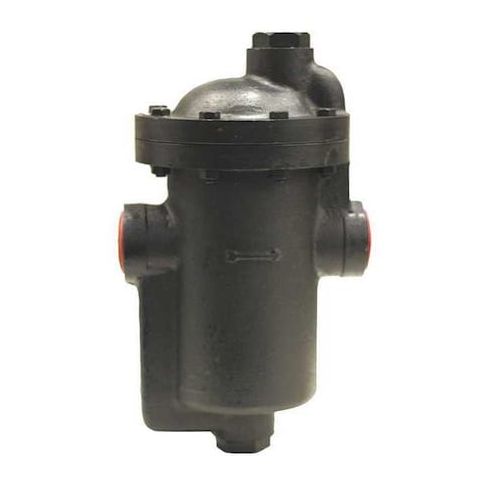

Steam Trap, 1-1/4" NPT Outlet, SS Disc MPN:IB15-5-250
Steam Trap, 1-1/4" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for a variety of applications, including blast coils, water heaters, laundry, and steam kettles. Its ability to function at a minimum temperature of 35 degrees F makes it suitable for use in cold climates. The steam trap features a stainless steel disc and cast iron body, ensuring durability and long lifespan. With a condensate capacity of 7,000 lb/hr, it can handle high-volume condensate removal. Its in-line configuration and compact design make it easy to install and integrate into existing systems.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- Float Material Stainless Steel
- Air Vent Included
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 7,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 10 1/4 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 12.00
- Package Height: 20.00
- Package Weight: 75.00
Product info last updated on February 1, 2026 11:15am UTC
Category: HVACR and Appliance Controls
