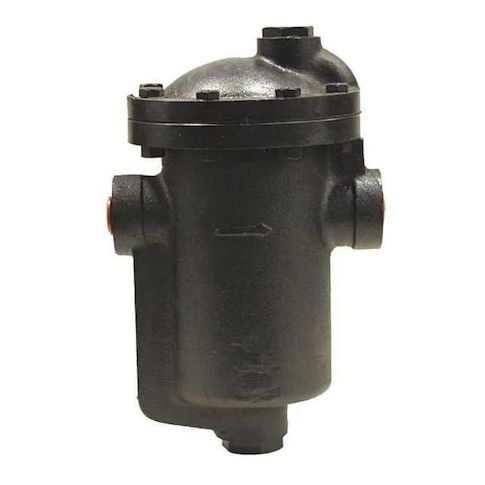

Steam Trap, 1" NPT Outlet, SS Disc MPN:IB14--5-30
Steam Trap, 1" NPT Outlet, SS Disc
This Mepco Steam Trap is designed for efficient condensate removal in various steam-powered applications. Suitable for use in blast coils, water heaters, laundry equipment, and steam kettles, it allows for reliable operation at minimum temperatures of 35°F. With a condensate capacity of 6,810 lb/hr, it effectively manages condensate flow. The trap's in-line configuration and horizontal installation orientation make it easy to integrate into existing systems. Its durable construction, featuring a stainless steel disc and cast iron body, ensures long-lasting performance. Ideal for industries requiring precise temperature control, this steam trap provides reliable and efficient condensate removal.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- In-line Configuration
- Stainless Steel Float Material
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 6,810 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 9 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 16.00
- Package Weight: 45.00
