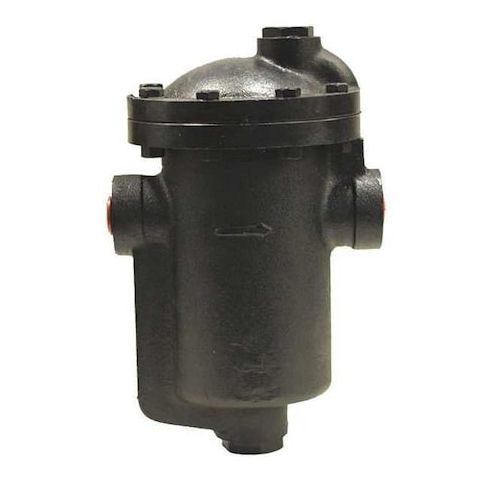

Steam Trap, 1-1/4" NPT Outlet, SS Disc MPN:IB14-5-250
Steam Trap, 1-1/4" NPT Outlet, SS Disc
This Steam Trap from Mepco is a reliable solution for a variety of applications, including blast coils, water heaters, laundry facilities, and steam kettles. Its compact design allows for in-line installation, and the stainless steel disc and lever assembly provide durability and resistance to corrosion. With a condensate capacity of 5,725 lb/hr, it efficiently handles condensate removal, helping to prevent water hammer and reduce energy costs. Suitable for use in temperatures as low as 35°F, this steam trap is a versatile and effective addition to any steam-based system.
Top product features:
- Allowable temperature range of 35 Degrees F
- In-line configuration
- Cast iron body material
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 5,725 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 9 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 16.00
- Package Weight: 45.00
Product info last updated on January 31, 2026 10:55pm UTC
Category: HVACR and Appliance Controls
