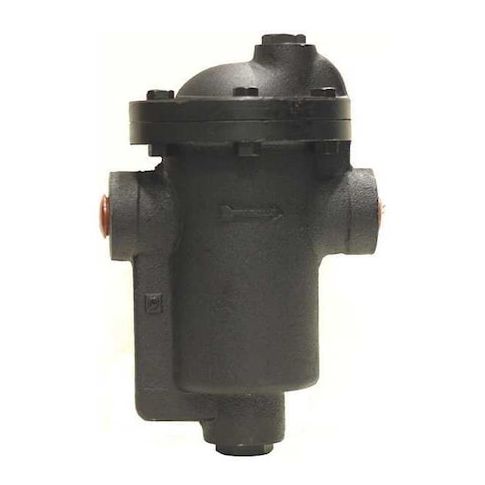

Steam Trap, 3/4" NPT Outlet, SS Disc MPN:IB13-4-30
Steam Trap, 3/4" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for managing condensate in various applications, including blast coils, water heaters, laundry, steam kettles, and more. Its minimum allowable temperature of 35 degrees F ensures optimal performance in low-temperature environments. The trap's cast iron body and stainless steel disc provide durability and resistance to corrosion, while its non-asbestos fiber gasket ensures a secure seal. With a condensate capacity of 4,000 lb/hr, this in-line steam trap is ideal for high-demand applications, and its compact design makes it easy to install in horizontal orientations.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- Cast Iron Body Material
- Stainless Steel Disc
Top product applications:
- Blast Coils
- Water Heaters
- Steam Kettles
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 4,000 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 7 3/4 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.60
- Package Width: 12.60
- Package Height: 9.10
- Package Weight: 36.85
Product info last updated on February 1, 2026 9:10am UTC
Category: HVACR and Appliance Controls
