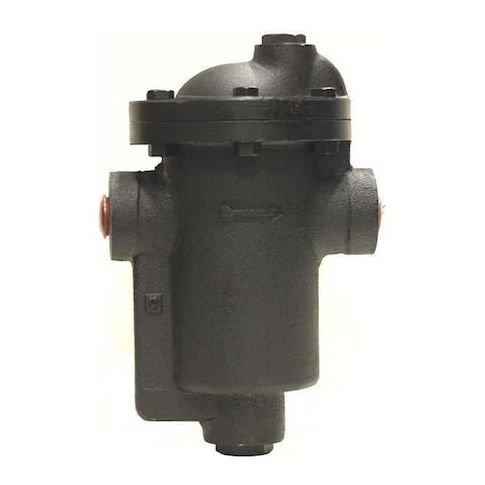

Steam Trap, 3/4" NPT Outlet, SS Disc MPN:IB13-3-250
Steam Trap, 3/4" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable solution for managing condensate in various steam-based applications. Suitable for use in blast coils, water heaters, laundry systems, and steam kettles, this trap ensures efficient condensate removal and minimizes the risk of water hammer and damage. Its stainless steel disc and cast iron body provide durability and resistance to corrosion, while its 3,500 lb/hr capacity makes it ideal for high-demand systems. With a compact in-line design and easy installation, the Mepco Steam Trap is a valuable addition to any steam-based operation.
Top product features:
- Allowable Temperature Minimum 35 Degrees F
- In-line Configuration
- Stainless Steel Disc
Top product applications:
- Blast Coils
- Water Heaters
- Laundry
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Blast Coils, Water Heaters, Laundry, Steam Kettles, Body Material Cast Iron, Bolt Grade Grade 5, Grade 7, Condensate Capacity 3,500 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 7 3/4 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 9.00
- Package Height: 14.00
- Package Weight: 28.00
