Steam Trap, 3/4" NPT Outlet, SS Disc MPN:44-215G

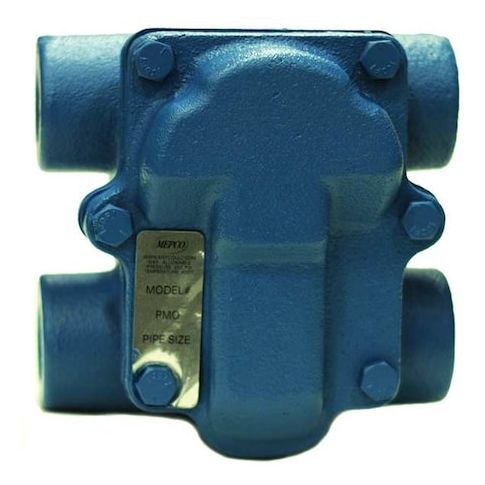

Steam Trap, 3/4" NPT Outlet, SS Disc
This Mepco Steam Trap is designed for use in steam heating and process equipment applications, providing efficient condensate removal and reducing the risk of steam leaks and energy loss. Its stainless steel disc and float ensure durability and resistance to corrosion, while the cast iron body provides a robust and long-lasting construction. With a condensate capacity of 2,175 lb/hr, this steam trap is suitable for a wide range of industrial applications, including power generation, chemical processing, and food manufacturing. Its compact design and horizontal installation orientation make it easy to integrate into existing systems.
Top product features:
- Allows steam condensate to drain at a low temperature of 35 Degrees F
- Has a condensate capacity of 2,175 lb/hr
- Features a stainless steel disc and lever assembly for durability and resistance to corrosion
Top product applications:
- Steam Heating
- Process Equipment
- Cast Iron Body
Steam Trap, Allowable Temperature - Minimum 35 Degrees F, Application Steam Heating, Process Equipment, Body Material Cast Iron, Condensate Capacity 2,175 lb/hr, Configuration H Pattern, Distance Between Inlet and Outlet Port 4 7/8 in, Float Material Stainless Steel, Gasket Material Non-Asbestos Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel, Manufacturer Series 44
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.30
- Package Height: 7.00
- Package Weight: 13.00
Product info last updated on February 1, 2026 10:40am UTC
Category: HVACR and Appliance Controls
