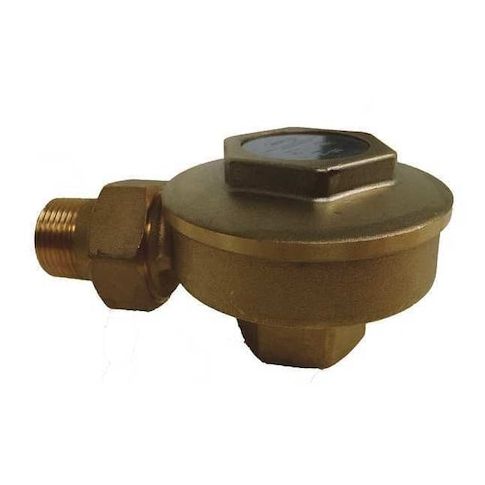

Steam Trap, 1" NPT Outlet, SS Disc MPN:TH-3C-APG
Steam Trap, 1" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable and efficient solution for managing steam condensate in various applications. With a maximum allowable pressure of 125 psi, it's suitable for use in coffee urns, pipe coils, and sterilizers. The stainless steel disc and brass body ensure durability and resistance to corrosion. This angle configuration steam trap can handle up to 2,500 lb/hr of condensate and features a 1in NPT outlet. Its compact design and air vent make it easy to install and maintain, making it an ideal choice for a wide range of steam management applications.
Top product features:
- Steam Trap allows for the removal of condensate from steam systems.
- The product includes an air vent to prevent air from entering the system.
- The steam trap has a stainless steel disc that resists corrosion.
Top product applications:
- Coffee Urns
- Pipe Coils
- Sterilizers
Steam Trap, Actuator Material Stainless Steel, Allowable Pressure - Maximum 125 psi, Application Coffee Urns, Pipe Coils, Sterilizers, Body Material Brass, Condensate Capacity 2,500 lb/hr, Configuration Angle, Distance Between Inlet and Outlet Port 3 1/2 in, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Inlet Port Connection Gender Female, Inlet Port Connection Size 1 in, Inlet Port Connection Type NPT, Installation Orientation Horizontal, Manufacturer Series TH
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 3.40
- Package Height: 3.30
- Package Weight: 2.25
Product info last updated on March 14, 2026 1:27am UTC
Category: HVACR and Appliance Controls
