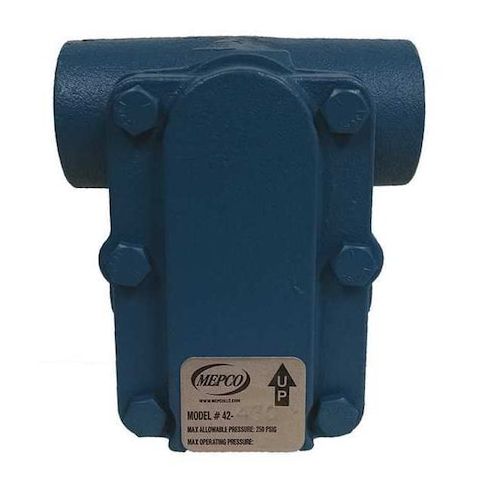

Steam Trap, 11/32" NPT Outlet, SS Disc MPN:42-215A
Steam Trap, 11/32" NPT Outlet, SS Disc
The Mepco Steam Trap is a reliable solution for managing condensate in low-pressure mains, pressing machines, risers, space heaters, unit heaters, and water heaters. Made with durable cast iron and stainless steel components, this in-line steam trap ensures efficient condensate removal and minimizes the risk of water hammer and corrosion. With a condensate capacity of 1,129 lb/hr, it's perfect for applications where high-performance condensate removal is critical. Its compact design and easy installation make it a convenient choice for various industries, including manufacturing and HVAC. By selecting this steam trap, you can optimize system performance, reduce downtime, and increase overall efficiency.
Top product features:
- It allows condensate to be removed from low-pressure mains, pressing machines, risers, space heaters, unit heaters, and water heaters.
- It includes an air vent made of stainless steel to regulate pressure.
- It has a cast iron body with a graphite fiber gasket to ensure a secure seal.
Top product applications:
- Low Pressure Mains
- Pressing Machines
- Risers
Steam Trap, Air Vent Material Stainless Steel, Allowable Temperature - Minimum 35 Degrees F, Application Low Pressure Mains, Pressing Machines, Risers, Space Heaters, Unit Heaters, Water Heaters, Body Material Cast Iron, Bolt Grade Grade 5, Condensate Capacity 1,129 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 5 in, Float Material Stainless Steel, Gasket Material Graphite Fiber, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.30
- Package Height: 6.30
- Package Weight: 6.35
Product info last updated on January 31, 2026 7:16am UTC
Category: HVACR and Appliance Controls
